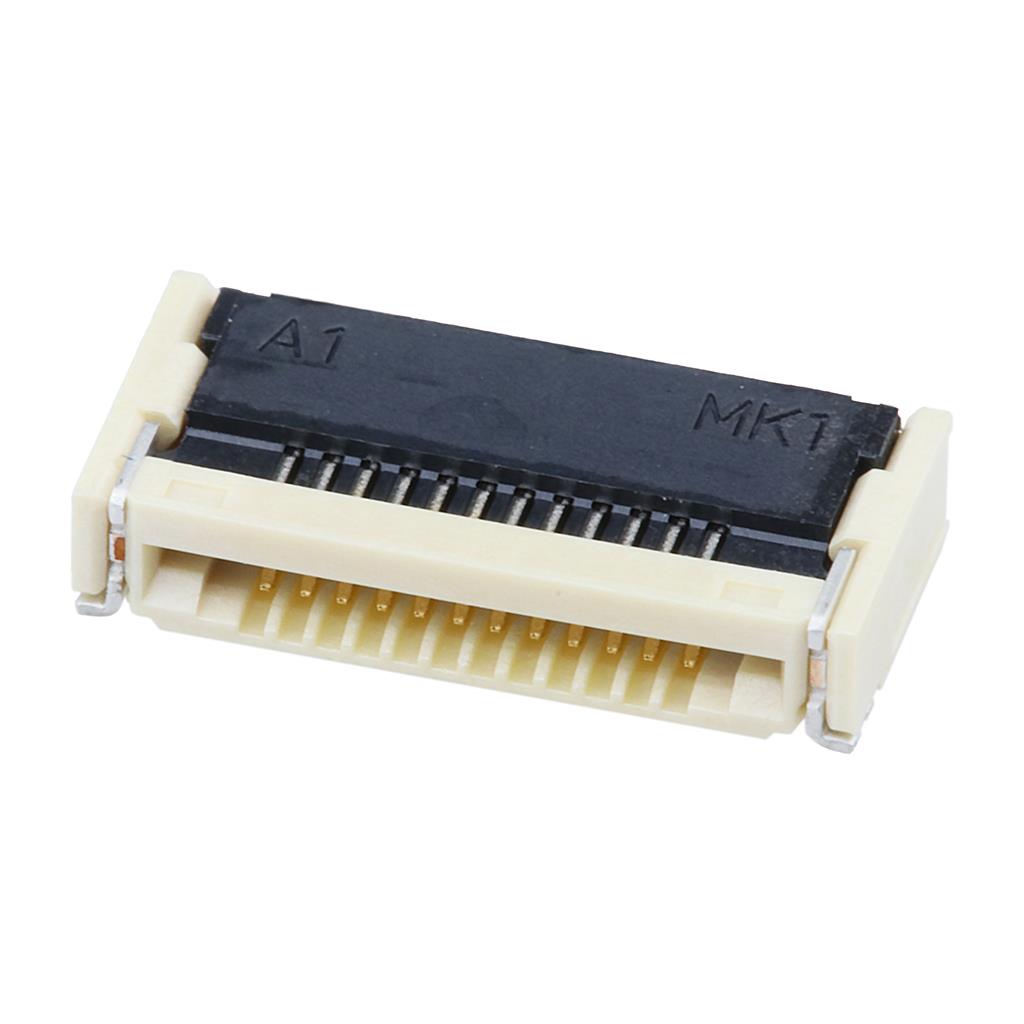

FFC, FPC (Flat Flexible) Connector Assemblies 2024970120 product image

2024970120

$0.57

Description：0.5 FFC BF 12P H=2.0 ASS'Y
Series：Backflip, Easy-On 20249
Mfr：Molex
Package：Bulk

SKU:c1206f287fb0 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2024970120 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is 0.5 FFC BF 12P H=2.0 ASS'Y. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 2024970120

Description：0.5 FFC BF 12P H=2.0 ASS'Y
Series：Backflip, Easy-On 20249
Mfr：Molex
Package：Bulk
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Bottom
Number of Positions：12
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：Flip Lock, Backlock
Cable End Type：Notched
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：-
Voltage Rating：50V
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 2024970120

2024970120
