20525-040E-02

Headers, Receptacles, Female Sockets Overview

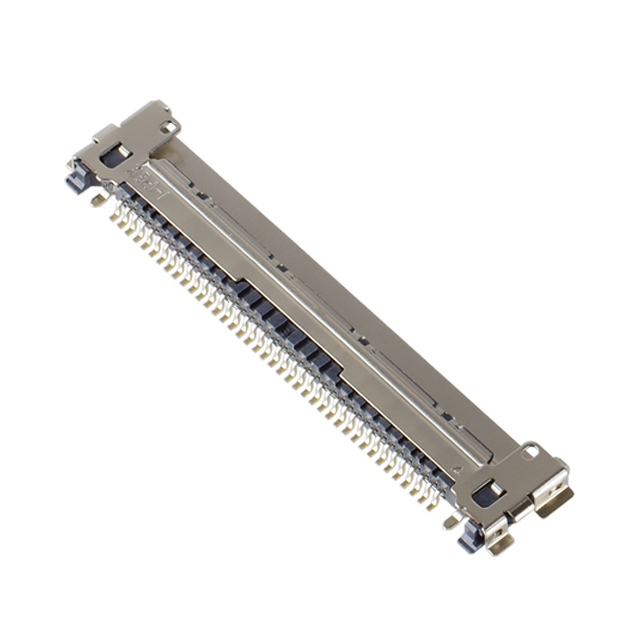

The I-PEX 20525-040E-02 is a CABLINE®-CA series receptacle connector designed for wire-to-board applications. It features a 0.4 mm pitch and accommodates 40 pins in a single row configuration. The component utilizes surface mount technology (SMT) with a side-insert mating orientation, resulting in a combined height of 1.1 mm. It is engineered to mate with the corresponding 20523-040T-01 pin header.

Headers, Receptacles, Female Sockets Feature Summary

• Supports high-speed signal transmission suitable for eDP and MIPI interfaces
• Compatible with micro-coaxial cables or discrete wires for flexible routing
• Incorporates a mechanical locking structure to ensure secure connection stability

Headers, Receptacles, Female Sockets Applications

• Notebook and tablet display connections
• Camera module interconnections
• AR/VR headset internal linkages
• Drone sensor data transmission

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific application requires the 40-pin variant, as the CABLINE-CA series offers multiple pin counts. Confirm compatibility with the designated 20523-040T-01 mating partner. Ensure design specifications align with the 0.4 mm pitch and 1.1 mm mated height constraints. Validate that the selected cable type matches the connector's micro-coaxial or discrete wire support capabilities.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when board space is limited due to its compact 0.4 mm pitch and low profile. Choose this part for designs requiring robust mechanical retention in vibration-prone environments like drones or cameras. Consider this connector for high-bandwidth video or data links where signal integrity is critical. Ensure the PCB layout supports the specified SMT side-insert mounting method.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the CABLINE®-CA family, which specializes in ultra-small, high-speed interconnect solutions. The series is widely adopted in portable electronics and industrial devices requiring reliable data transfer in constrained spaces. It represents I-PEX's focus on miniaturization without compromising signal performance or mechanical durability.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available.
