20525-060E-02

Headers, Receptacles, Female Sockets Overview

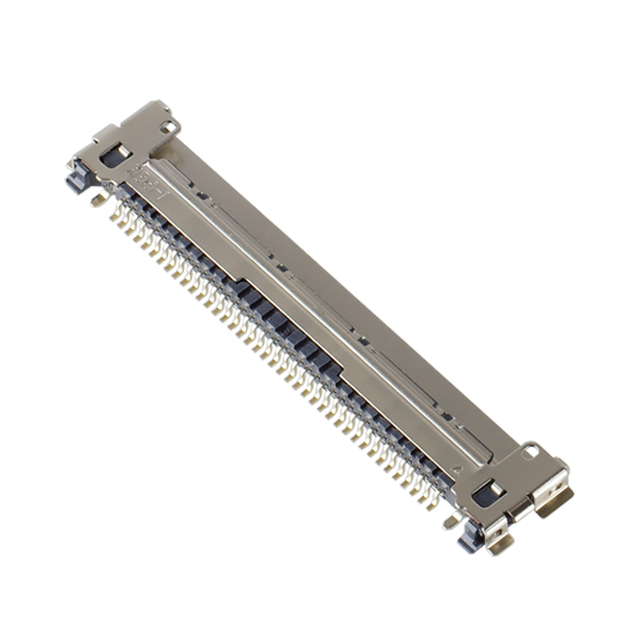

The I-PEX 20525-060E-02 is a CABLINE®-CA series receptacle connector featuring 60 positions with a 0.40mm pitch. Designed for surface mount, right-angle installation, it utilizes gold-plated phosphor bronze contacts and LCP insulation. Rated at 100VAC with an operating temperature range of -40°C to 85°C, this shielded component employs a push-pull locking mechanism and fixed solder tails for secure board-to-cable connections.

Headers, Receptacles, Female Sockets Feature Summary

• High-density 0.40mm pitch design supporting compact PCB layouts
• Integrated shielding structure for enhanced electromagnetic interference protection
• Robust mechanical push-pull locking system ensuring reliable mating stability
• Gold-plated contact surfaces optimized for high-speed signal integrity

Headers, Receptacles, Female Sockets Applications

• General purpose interconnects
• Telecommunications equipment
• High-speed data transmission systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official I-PEX documentation to confirm current availability and manufacturing status. Ensure that procurement channels provide authentic components with traceable origin records. Cross-reference technical specifications with project requirements prior to ordering to prevent compatibility issues during integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a 60-position, right-angle SMT receptacle is required for high-density applications. Confirm that the mating cable assembly matches the micro-coaxial or discrete wire specifications compatible with the CABLINE®-CA series. Validate that the 0.40mm pitch aligns with existing PCB footprint designs and thermal management constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the CABLINE®-CA family, engineered for ultra-high-speed data transmission in space-constrained environments. The series supports advanced signaling protocols by maintaining strict impedance control and minimizing crosstalk. It serves as a critical interface solution for modern electronic devices demanding reliable, high-bandwidth connectivity between flexible cables and rigid substrates.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official I-PEX substitution guides for verified alternatives. Ensure replacement parts maintain identical pin counts, pitch dimensions, and mounting configurations to guarantee mechanical and electrical compatibility within the existing system architecture.
