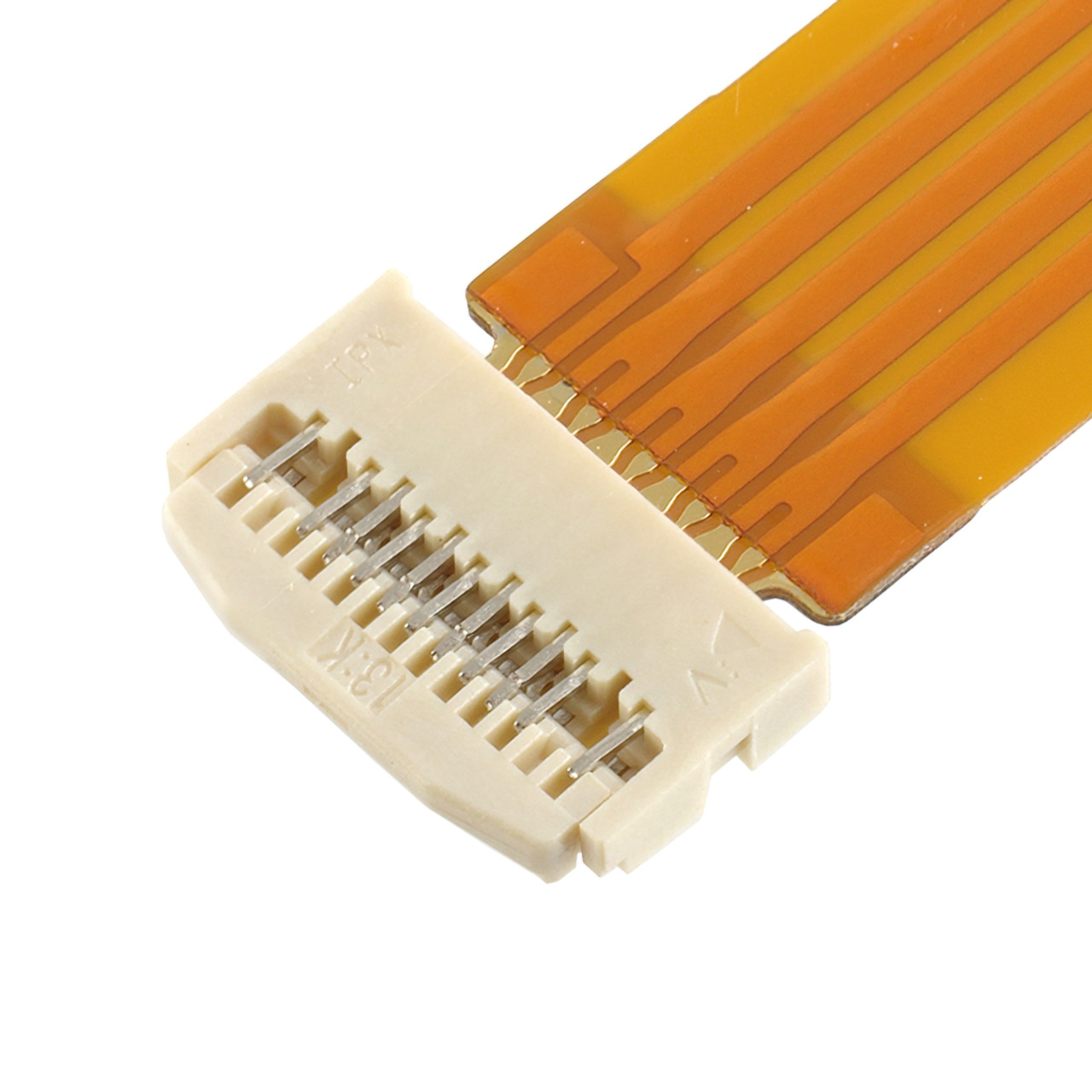

20599-031E-01

20599-031E-01 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists I-PEX. Its product description is CONN FFC 31POS 0.6MM SMD R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 20599-031E-01

• Description：CONN FFC 31POS 0.6MM SMD R/A
• Series：MINIFLEX® 3-BFN LK
• Mfr：I-PEX
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：31
• Pitch：0.024" (0.60mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.035" (0.88mm)
• Locking Feature：Flip Lock, Backlock
• Cable End Type：Notched or Tabbed
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Liquid Crystal Polymer (LCP)
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 20599-031E-01
