2063-08-01-P2

Headers, Receptacles, Female Sockets Overview

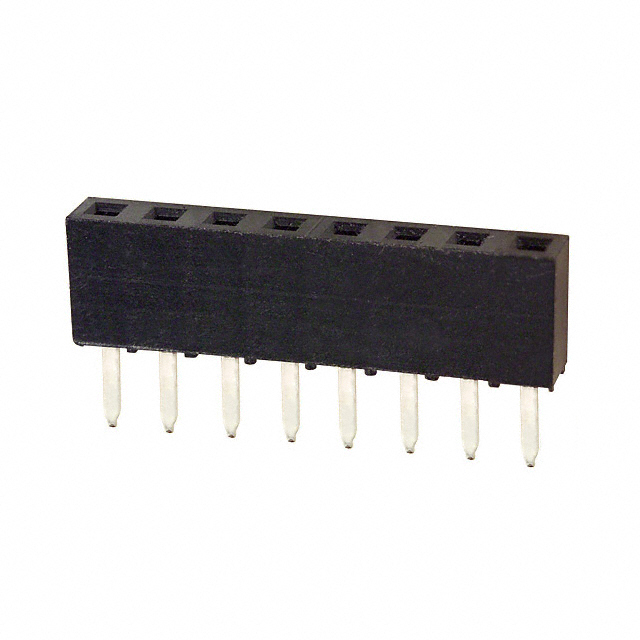

The NorComp 2063-08-01-P2 is an 8-position rectangular connector receptacle designed for vertical board-to-board applications. It features a 2.00 mm (0.079 inch) pin spacing and utilizes gold flash plating on contacts to ensure reliable signal transmission. The component is configured as a single-row female socket intended for surface mount or through-hole PCB installation, providing a compact interconnection solution for electronic assemblies requiring high-density connections.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical orientation design facilitates direct board-to-board mating in constrained spaces
• Gold flash contact plating provides corrosion resistance and stable electrical performance
• Single-row receptacle configuration supports efficient routing of multiple signal lines

Headers, Receptacles, Female Sockets Applications

• Industrial control system interconnections
• Consumer electronics internal module linking
• Telecommunications equipment board assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version for the 2063-08-01-P2 to confirm exact mounting style requirements and soldering profiles. Ensure that the receiving PCB footprint matches the 2.00 mm pitch specification precisely. Cross-reference the manufacturer's latest documentation to validate compliance with current environmental standards before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, low-profile connection is required between two printed circuit boards. The 2.00 mm pitch offers a balance between density and manufacturability. Consider the gold flash finish for environments where oxidation resistance is critical. Evaluate spatial constraints to ensure the vertical height accommodates the assembly clearance requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the NorComp 206x series of rectangular connectors, which are engineered for general-purpose board-to-board applications. The series typically includes various pin counts and orientations to support diverse electronic design needs. The 2063-08-01-P2 specifically addresses the need for an 8-position vertical interface within this product family.

Headers, Receptacles, Female Sockets FAQ

What is the contact gender for the 2063-08-01-P2?

The 2063-08-01-P2 is a receptacle connector, meaning it contains female sockets designed to mate with male pins.

Does this connector support right-angle mounting?

No, the 2063-08-01-P2 is specified as a vertical connector, intended for straight-through board-to-board alignment rather than right-angle configurations.
