20879-060E-01

Headers, Receptacles, Female Sockets Overview

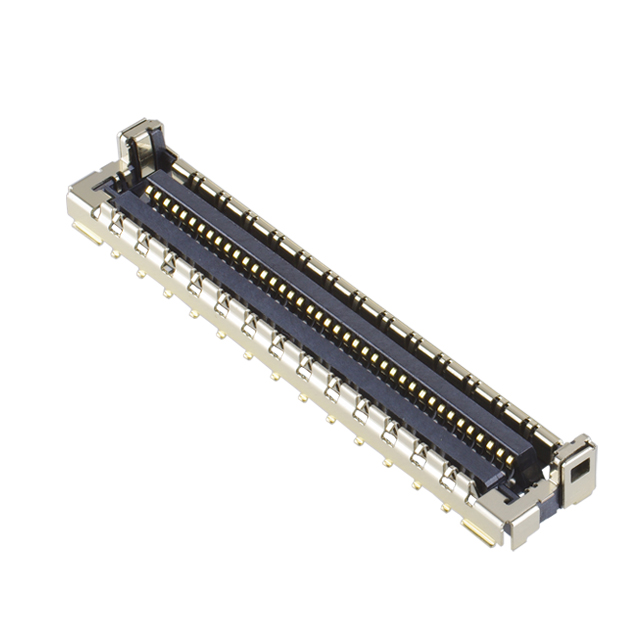

The I-PEX 20879-060E-01 is a CABLINE®-UM series receptacle connector featuring 60 positions with a 0.016-inch (0.40mm) mating pitch. Designed for surface mount, right-angle installation, it utilizes gold-plated contacts and a black liquid crystal polymer (LCP) insulation rated UL94 V-0. The component supports a maximum voltage of 100VAC and operates within a temperature range of -40°C to 105°C. It includes a latch bracket for secure retention and fixed solder tails.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for space-efficient PCB integration
• Gold-plated contacts ensure reliable signal transmission
• Integrated latch bracket provides secure mechanical retention
• Shielded construction minimizes electromagnetic interference

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment internal connections
• General purpose electronic interconnects
• High-speed data transmission modules
• Consumer electronics board-to-cable interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, orientation, and packaging type. Ensure compatibility with mating header connectors regarding pitch and contact configuration. Confirm that the surface mount footprint matches the provided EDA/CAD model dimensions for accurate PCB layout implementation.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, right-angle receptacle is required for micro-coaxial cable applications. Consider the 0.40mm pitch constraint and the 60-position capacity relative to available board space. Evaluate the operating temperature range and voltage rating against system requirements to ensure long-term reliability in the intended environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the CABLINE®-UM series, which specializes in ultra-miniature micro-coaxial interconnect solutions. The series is engineered for high-speed signal integrity in compact form factors. The 20879-060E-01 variant specifically addresses needs for higher channel counts in tight spaces while maintaining signal performance standards typical of modern portable and industrial devices.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official I-PEX cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting style to guarantee mechanical and electrical compatibility without redesigning the host assembly.
