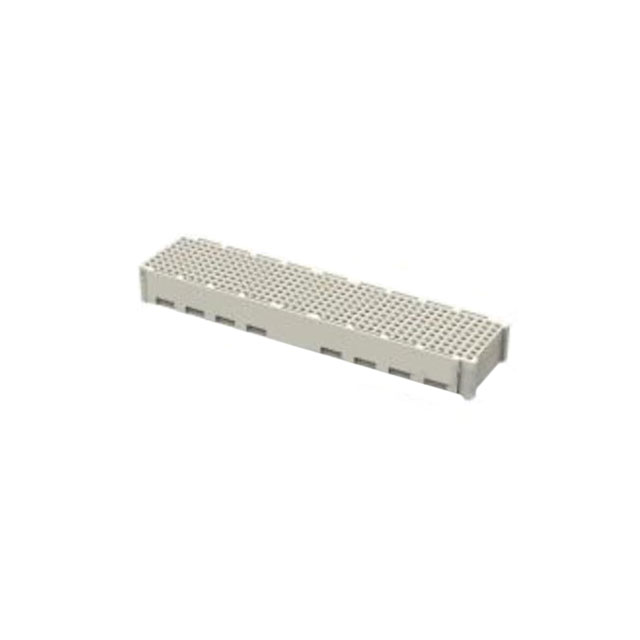

2102430-1

2102430-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is CONN RCPT 320POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2102430-1

• Description：CONN RCPT 320POS 0.05 GOLD SMD
• Series：Mezalok
• Mfr：TE Connectivity Aerospace, Defense and Marine
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：320
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：8
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：50.0µin (1.27µm)
• Insulation Color：Natural
• Insulation Height：0.236" (6.00mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：10mm
• Ingress Protection：-
• Features：Pick and Place
• Current Rating (Amps)：-
• Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 2102430-1
