2132272230

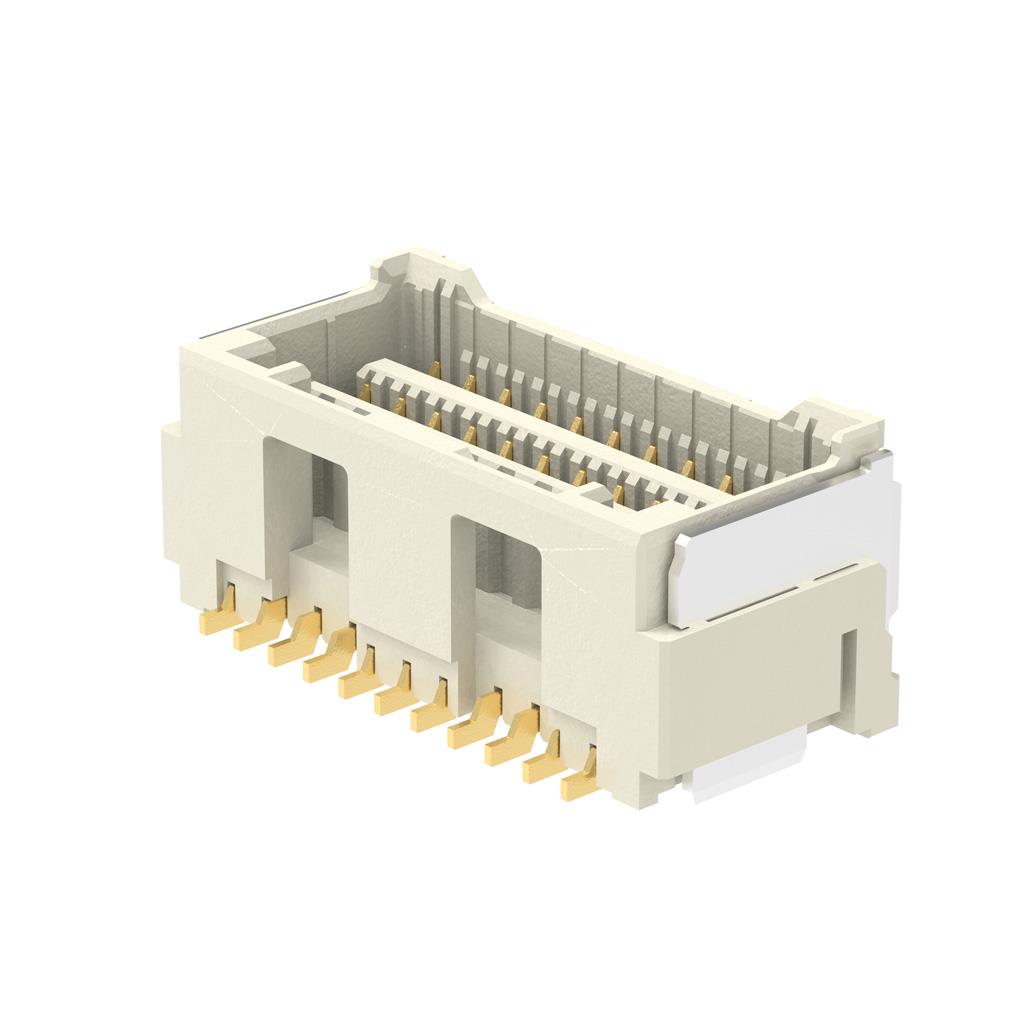

2132272230 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is DRVT 1.5 SMT AU0.38 ETP 22P NAT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2132272230

• Description：DRVT 1.5 SMT AU0.38 ETP 22P NAT
• Series：CLIK-Mate 213227
• Mfr：Molex
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Cable/Wire
• Number of Positions：22
• Number of Positions Loaded：All
• Pitch - Mating：0.059" (1.50mm)
• Number of Rows：2
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Insulation Color：Natural
• Insulation Height：0.346" (8.80mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Pick and Place, Solder Retention
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：100VAC/DC

Headers, Receptacles, Female Sockets datasheet and documents for 2132272230
