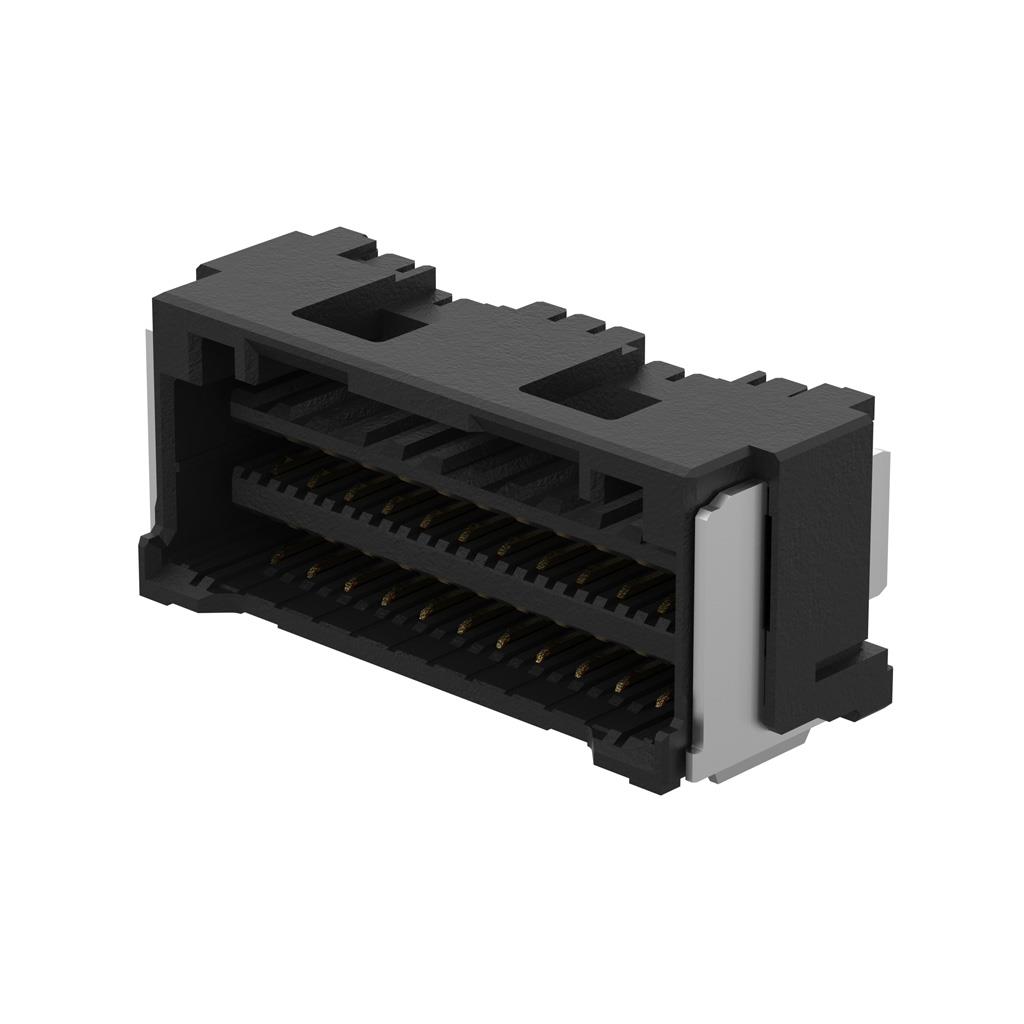

2132282471

2132282471 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CLIK-MATE1.5 DRRA SMT AU0.76 ETP. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2132282471

• Description：CLIK-MATE1.5 DRRA SMT AU0.76 ETP
• Series：CLIK-Mate 213228
• Mfr：Molex
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Cable/Wire
• Number of Positions：24
• Number of Positions Loaded：All
• Pitch - Mating：0.059" (1.50mm)
• Number of Rows：2
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.362" (9.20mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Solder Retention
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：100VAC/DC
