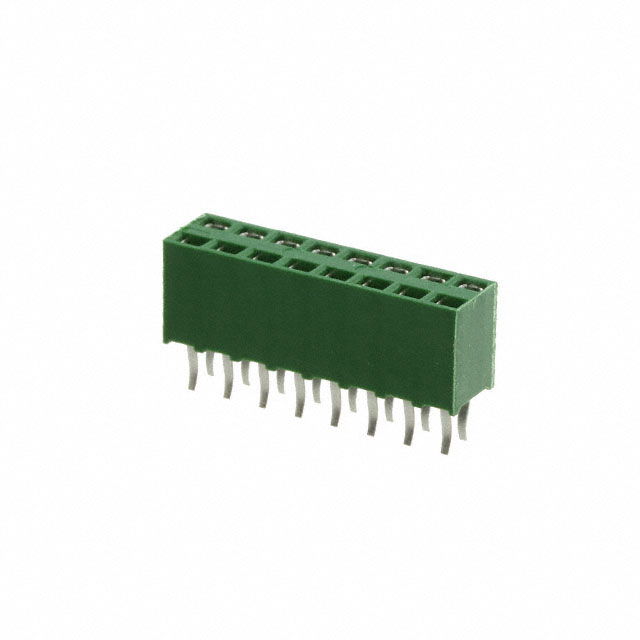

215308-8

215308-8 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT 16POS 0.1 TIN PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 215308-8

• Description：CONN RCPT 16POS 0.1 TIN PCB
• Series：AMPMODU HV-100
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk,Bulk
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：16
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：98.4µin (2.50µm)
• Insulation Color：Green
• Insulation Height：0.276" (7.00mm)
• Contact Length - Post：0.122" (3.10mm)
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 215308-8
