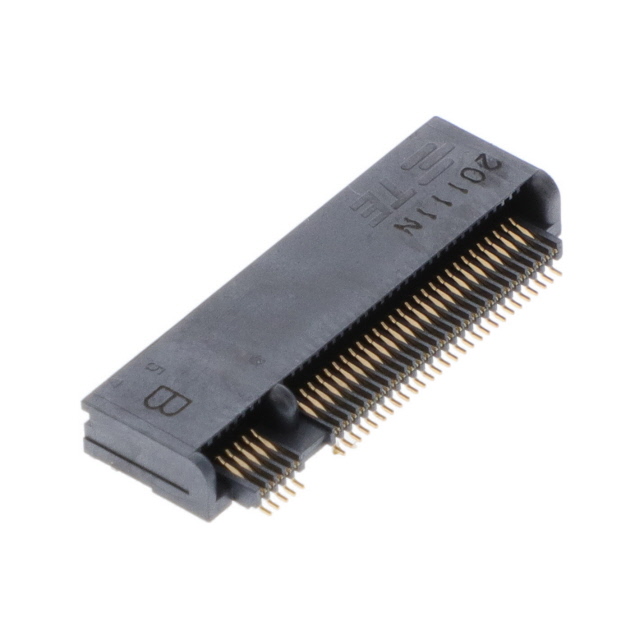

2199119-5

$1.93

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:18ab8c7341a7 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2199119-5 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN M.2 FMALE 67POS 0.020 GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2199119-5

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：-
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 2199119-5

2199119-5

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors 2199119-5 is a 67-position M.2 (NGFF) series card edge socket designed for surface mount, right-angle PCB installation. It features dual rows with a 0.5 mm pitch and gold-plated copper alloy contacts housed in black high-temperature thermoplastic. The connector supports double-sided modules and utilizes M-keying to enable PCI Express 3.0, USB 3.0, and SATA 3.0 interfaces. Rated for 50VAC operating voltage, it offers reduced height and PCB real estate compared to legacy mini cards.

Edgeboard Connectors Feature Summary

Supports multiple function add-in cards including Wi-Fi, Bluetooth, GNSS, and NFC
M-keying configuration ensures compatibility with PCIe 3.0, USB 3.0, and SATA 3.0 protocols
Optimized design reduces connector height by 15% and saves PCB real estate compared to PCIe mini cards
Ensures proper mating with various module cards while supporting higher data rates

Edgeboard Connectors Applications

Computer and computer peripherals
Portable devices
Consumer electronics
Wireless communication networks

Edgeboard Connectors Procurement Notes

Verify the specific suffix against the official datasheet to confirm contact plating thickness and keying orientation. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Ensure the ordering part number matches the required board guide and termination type specifications for the target application.

Edgeboard Connectors Selection Notes

Select this component for compact embedded designs requiring high-density interconnects. The right-angle surface mount profile suits space-constrained portable and consumer applications. Verify that the host PCB layout accommodates the 0.5 mm pitch and dual-row configuration. Ensure the system voltage does not exceed the 50VAC rating.

Edgeboard Connectors Part Context

This connector belongs to the M.2 (NGFF) series from TE Connectivity's AMP portfolio. It is engineered for precision engineering in compact, high-density embedded designs. The series provides a standardized solution for replacing larger form-factor connectors while maintaining robust electrical performance and mechanical reliability.
