22022105

Headers, Receptacles, Female Sockets Overview

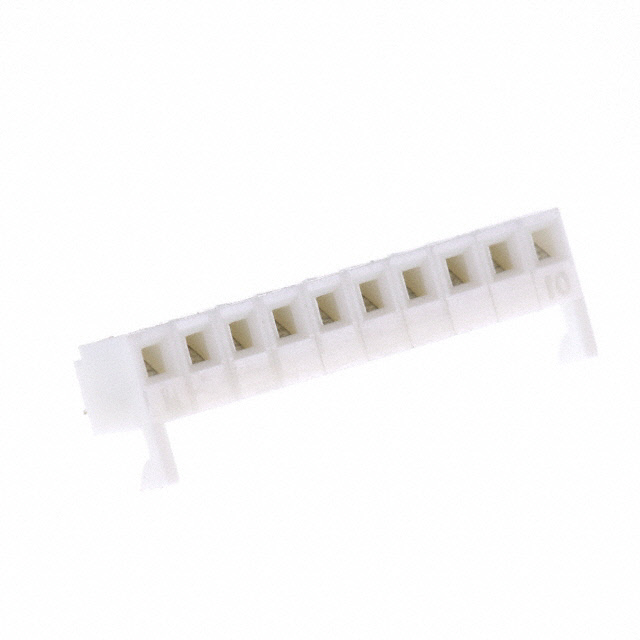

The Molex part number 22022105 is a KK 254 series PCB header receptacle connector. It features a 10-position configuration with a 0.100-inch (2.54mm) pin-to-pin spacing. The component utilizes through-hole termination for secure PCB mounting and includes top entry design with end-to-end stackability. Contacts are plated with 2.54µm tin to ensure reliable conductivity.

Headers, Receptacles, Female Sockets Feature Summary

• Top entry receptacle design with integrated hooks for secure mating
• End-to-end stackable architecture for multi-level board assembly
• Through-hole termination method for robust PCB integration

Headers, Receptacles, Female Sockets Applications

• Industrial automation control systems
• Consumer electronic device interconnects
• General purpose printed circuit board assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm plating thickness, hook presence, and packaging quantity. Ensure the selected variant matches the required 10-position count and through-hole pitch specifications for your application.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, stackable header is required for dense PCB layouts. The tin-plated contacts offer standard environmental resistance suitable for general industrial use. Confirm that the mechanical stacking height accommodates the system's spatial constraints.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the KK 254 series, a widely adopted standard for general-purpose PCB interconnections. The series is characterized by its compact form factor and reliable through-hole performance, serving as a foundational solution for connecting cables or secondary boards in various electronic equipment.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other KK 254 series headers from Molex with identical 10-position counts and 2.54mm pitch. Verify that alternative parts maintain the same top-entry orientation and stackable hook mechanism to ensure mechanical interchangeability.
