22173162

Headers, Receptacles, Female Sockets Overview

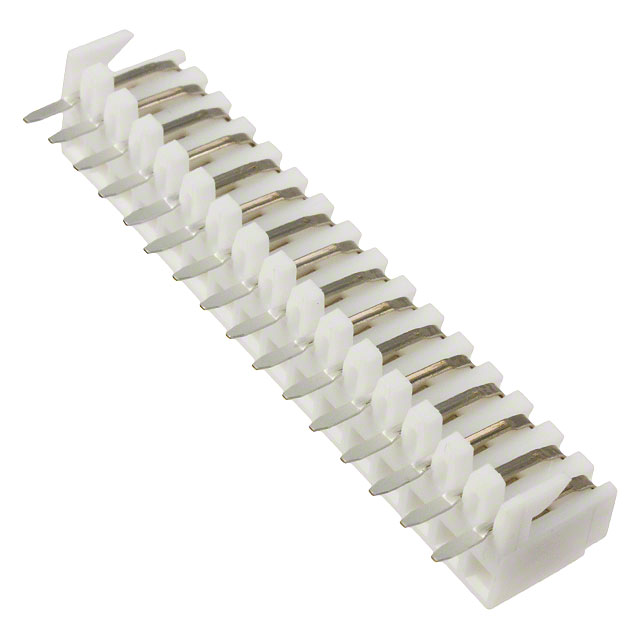

The Molex 22173162 is a 16-position receptacle from the 4455 series, designed for bottom entry through-hole PCB mounting. It features a 0.100 inch (2.54mm) pitch and operates within a temperature range of -40°C to +80°C. The connector supports a maximum voltage rating of 500V with a maximum contact resistance of 20 mOhm. Gold plating ensures reliable signal transmission.

Headers, Receptacles, Female Sockets Feature Summary

• Bottom entry receptacle design for vertical PCB integration
• Polarization system with offset header entry holes for correct mating alignment
• Gold-plated contacts for enhanced conductivity and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Consumer electronics assembly
• Industrial control systems
• Automotive electronic modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Molex documentation to confirm pin configuration and plating thickness. Ensure compatibility with mating headers regarding polarization offsets. Confirm that the through-hole footprint matches the target PCB design specifications before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 16-position vertical interconnect is required with robust polarization features. The 2.54mm pitch suits standard density applications. Consider the 500V rating and thermal limits for high-power or extreme environment deployments where standard connectors may fail.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex 4455 series, which focuses on high-reliability board-to-board connections. The series emphasizes secure mating through mechanical polarization, distinguishing it from generic socket assemblies in industrial and automotive sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify cross-compatibility with existing mating hardware before considering alternative sources.
