22182111

Headers, Receptacles, Female Sockets Overview

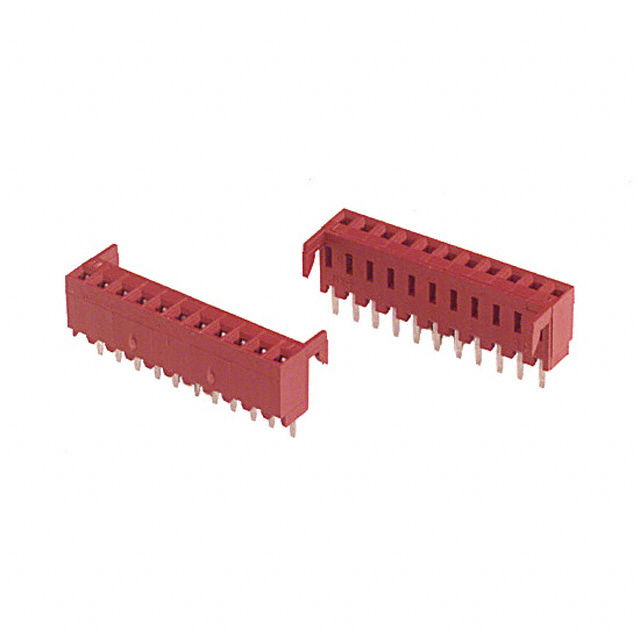

Molex part number 22182111 is a KK® Interconnection System receptacle connector designed for board-to-wire applications. It features a 2.54 mm (0.100 inch) pitch and accommodates 11 circuits in a top-entry configuration. The component utilizes through-hole termination for secure PCB mounting. Contact surfaces are finished with gold plating to ensure reliable signal transmission and corrosion resistance. This specific model serves as the housing or socket counterpart within the KK® system, intended for mating with compatible male pins.

Headers, Receptacles, Female Sockets Feature Summary

• Top-entry receptacle design for straightforward wire insertion
• Gold-plated contacts for enhanced conductivity and durability
• Through-hole termination method for robust PCB attachment

Headers, Receptacles, Female Sockets Applications

• General electronic equipment interconnections
• Consumer appliance control boards
• Industrial control panel wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the required order includes both the receptacle housing (22182111) and the corresponding terminal pins, as they are typically sold separately. Confirm that the selected pin size matches the 22-30 AWG range specified for the KK® series. Ensure the procurement specification aligns with the 11-circuit requirement and the through-hole mounting style.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 11-position, 2.54 mm pitch female connector is required for through-hole assembly. It is suitable for applications needing a top-entry orientation. Verify compatibility with the mating KK® series male terminals. Consider environmental factors such as temperature and current load to ensure the standard specifications meet the system requirements.

Headers, Receptacles, Female Sockets Part Context

The KK® Interconnection System by Molex is a widely used family of connectors known for their versatility and reliability. Part 22182111 belongs to this series, which offers various circuit counts and configurations. The system is characterized by its 2.54 mm pitch, making it a standard choice for general-purpose interconnects in electronics manufacturing across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the KK® series include other 11-position receptacles with identical pitch and termination style. Cross-referencing with generic 2.54 mm pitch connectors requires verifying mechanical dimensions and contact material compatibility. Always validate electrical ratings and physical fit before replacing the original Molex component.
