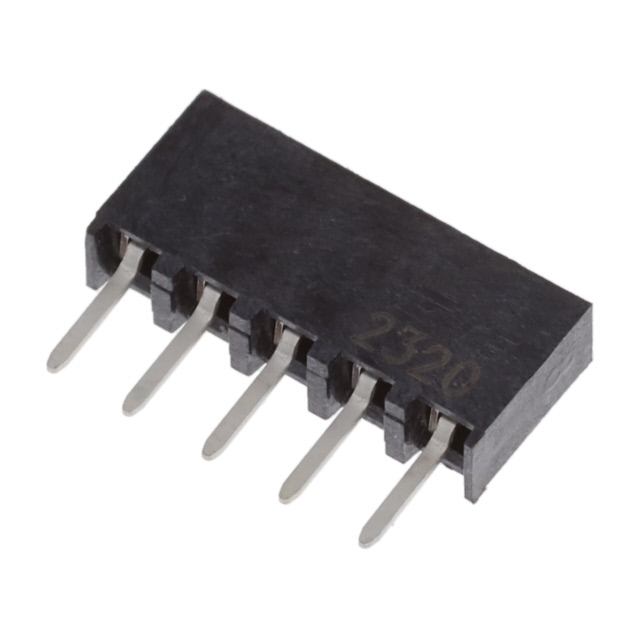

2314878-5

2314878-5 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 5P,2MM,B-B,REC,SRVT,2.7,0.76AU,T. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2314878-5

• Description：5P,2MM,B-B,REC,SRVT,2.7,0.76AU,T
• Series：AMPMODU
• Mfr：TE Connectivity AMP Connectors
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：5
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.177" (4.50mm)
• Contact Length - Post：0.106" (2.69mm)
• Operating Temperature：-40°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2A
• Voltage Rating：125V

Headers, Receptacles, Female Sockets datasheet and documents for 2314878-5
