2340331-1

Edgeboard Connectors Overview

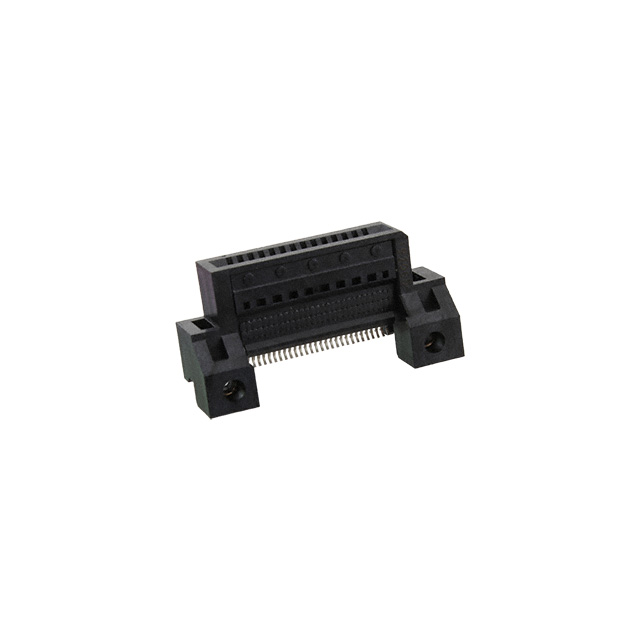

The TE Connectivity AMP Connectors part number 2340331-1 is a receptacle connector assembly featuring 56 positions. It utilizes a silver-plated contact finish and is designed for high-voltage applications. The component employs a board-to-cable or wire termination method with an insert-style connection interface. This assembly is intended for panel mounting installation, providing a robust electrical interconnection solution for industrial or specialized electronic systems requiring secure signal or power transmission.

Edgeboard Connectors Feature Summary

• High-voltage receptacle assembly design
• Silver-plated contact finish for reliable conductivity
• Panel mount installation configuration
• Board-to-cable/wire insert-style termination

Edgeboard Connectors Applications

• Industrial control systems
• Power distribution units
• Electronic equipment interconnections

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and any product change notices (PCN) prior to ordering, as component specifications may be subject to updates. Confirm that the silver-plated finish and high-voltage rating align with the target application's environmental and electrical requirements. Ensure compatibility with mating connectors and cable assemblies specified in the official documentation.

Edgeboard Connectors Selection Notes

Select this component when a 56-position high-voltage receptacle is required for panel-mounted applications. Consider the silver-plated contacts for corrosion resistance and conductivity needs. Evaluate the board-to-cable insertion style against available space and wiring constraints. Compare against other series options if different voltage ratings or contact materials are necessary for the specific system design.

Edgeboard Connectors Part Context

This part belongs to the broader category of connector assemblies manufactured by TE Connectivity AMP Connectors. It serves as a critical interconnect element within larger electronic systems, bridging printed circuit boards or cable harnesses to external interfaces. The 56-position count indicates its use in complex signal or power routing scenarios where multiple connections are consolidated into a single panel-mounted unit.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official manufacturer resources for potential obsolescence management or alternative series recommendations.
