2343428-1

Edgeboard Connectors Overview

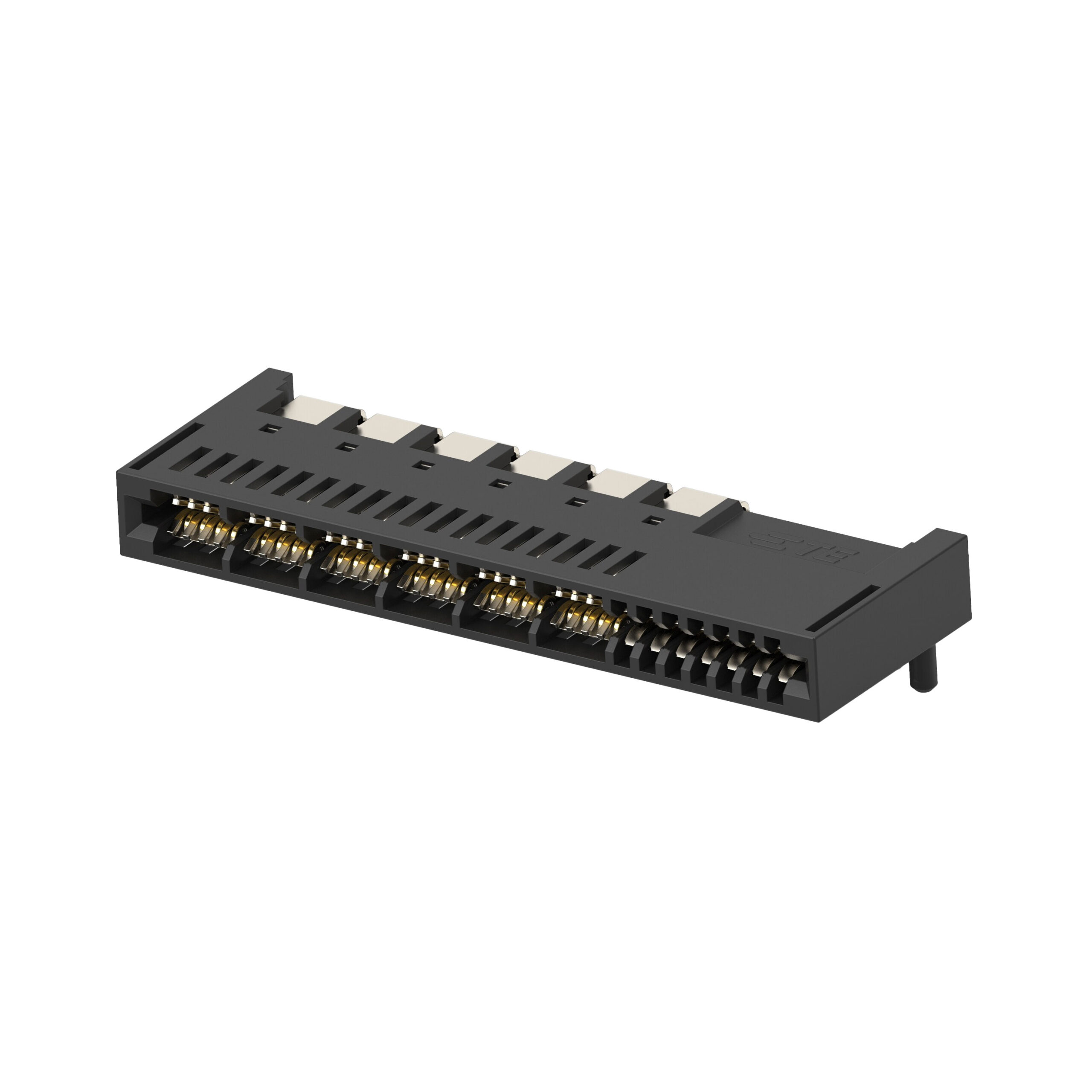

The TE Connectivity AMP Connectors part number 2343428-1 is a Card Edge Power Connector designed for high-definition plus (HD+) applications. It features a dual female configuration with 26 positions, arranged as 12 power and 14 signal contacts. The connector utilizes a 7.62 mm (.3 in) centerline pitch and employs a right-angle orientation for mounting. Construction includes a thermoplastic body filled with glass for structural integrity. The assembly supports through-hole mounting techniques to secure the component to the circuit board.

Edgeboard Connectors Feature Summary

• Dual female contact configuration supporting both power and signal transmission
• Right-angle design for efficient board space utilization
• Glass-filled thermoplastic body construction for durability

Edgeboard Connectors Applications

• High-definition plus (HD+) system interconnects
• Board-to-board power and signal connections
• Card edge module integration

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and certification status prior to procurement. Confirm that the right-angle orientation and through-hole mounting requirements align with the target PCB layout. Ensure compatibility with the required card edge thickness and plating specifications for reliable electrical contact performance.

Edgeboard Connectors Selection Notes

Select this component when a robust power and signal interface is required for HD+ architectures. The 7.62 mm pitch accommodates higher current demands compared to standard signal connectors. The right-angle form factor aids in managing cable strain and routing constraints within dense electronic enclosures.

Edgeboard Connectors Part Context

This component belongs to the Card Edge Power Connector category from TE Connectivity AMP Connectors. It serves as a critical interface element in systems requiring simultaneous high-power delivery and data signal integrity. The design emphasizes mechanical stability through its reinforced body material and precise pin alignment.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference availability directly with the manufacturer or authorized distributors before initiating replacement procedures.
