2379397-9

Edgeboard Connectors Overview

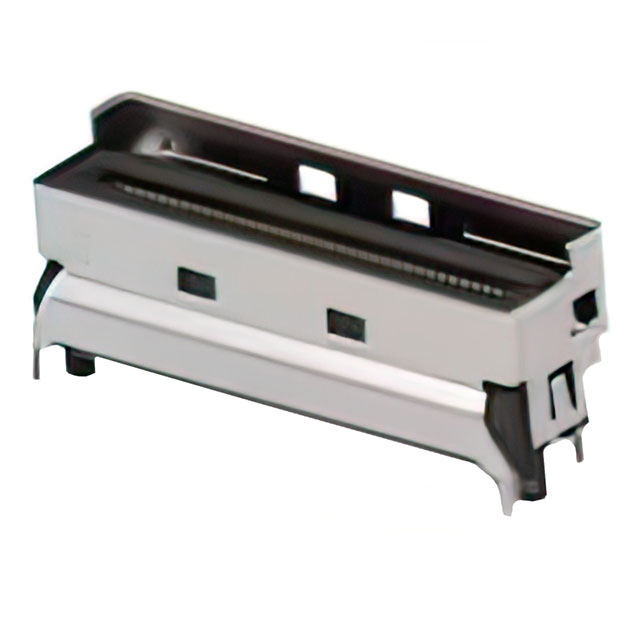

The TE Connectivity AMP Connectors part number 2379397-9 is a Mini Cool Edge I/O (MCIO) cable plug assembly designed for vertical, cable-to-board connections. It features a 74-position configuration with a 0.6 mm pitch and utilizes surface mount termination. The contacts are constructed from copper alloy with a gold finish, ensuring reliable signal transmission in high-density internal I/O applications.

Edgeboard Connectors Feature Summary

• Vertical cable-to-board integration
• Mini Cool Edge I/O standard compliance
• Surface mount termination

Edgeboard Connectors Applications

• Internal I/O connectivity
• High-density data interfaces
• Server and storage backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact finish thickness and mating compatibility. Ensure that the selected variant aligns with the required SFF-TA-1016 specifications for your design. Cross-reference the manufacturer datasheet to confirm current production status and availability constraints before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component for applications requiring vertical MCIO cable assemblies with surface mount capabilities. Evaluate the 74-position count against system requirements. Confirm that the 0.6 mm pitch matches the target PCB footprint and that the copper alloy material meets environmental and performance standards.

Edgeboard Connectors Part Context

This connector belongs to the Mini Cool Edge I/O series, which supports high-speed data transfer in compact form factors. It is engineered for internal device connections where space efficiency and reliable signal integrity are critical. The design adheres to industry standards for modern computing infrastructure.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting orientation to guarantee mechanical and electrical compatibility within the existing assembly.
