2381578-7

Edgeboard Connectors Overview

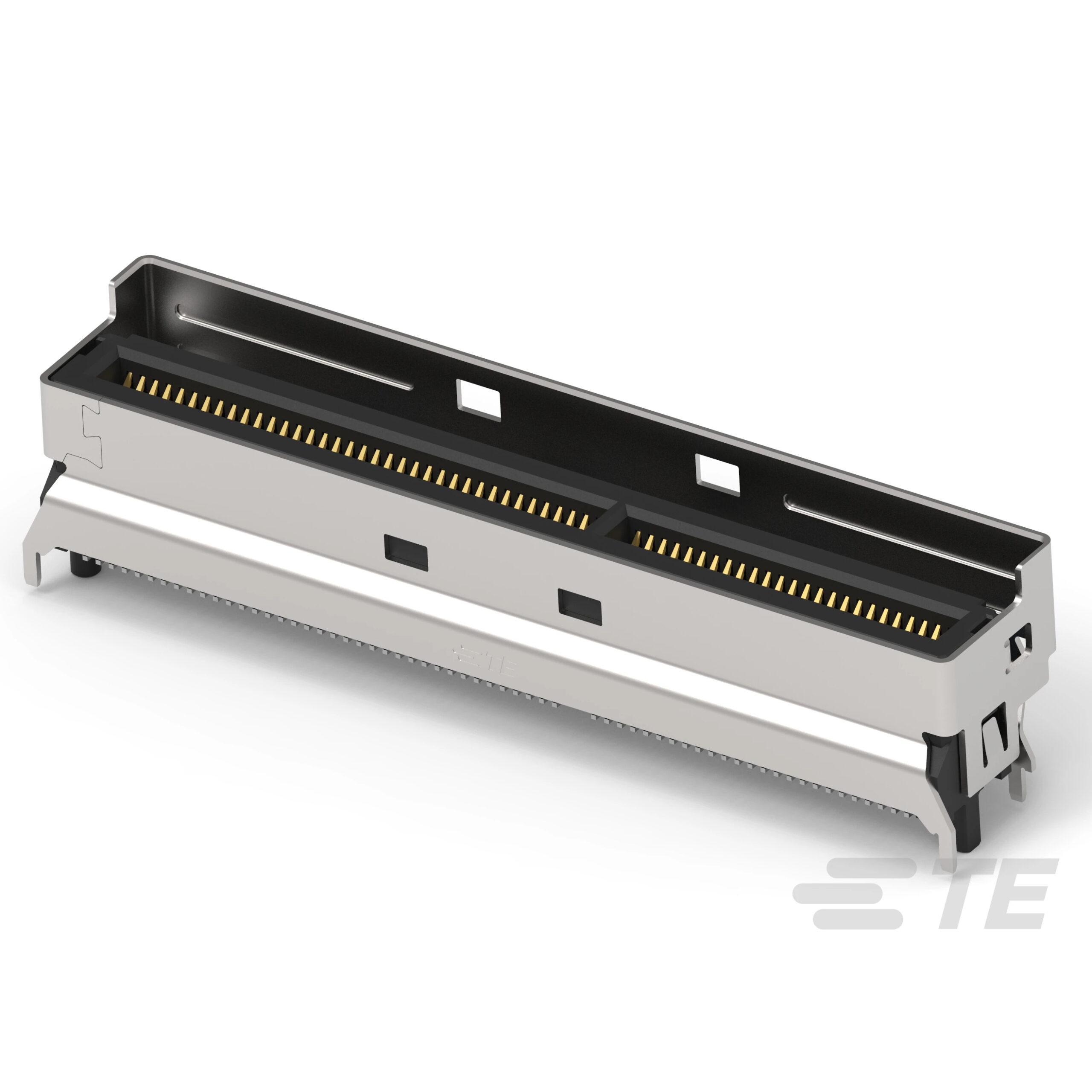

The TE Connectivity AMP Connectors part number 2381578-7 is an MCIO integrated connector designed for vertical mounting. It features a dual edge card configuration with 124 positions and female gender. The contact material utilizes gold plating, while the housing is black. This component belongs to the Mini Cool Edge IO series and is classified as an internal I/O connector.

Edgeboard Connectors Feature Summary

• Integrated MCIO design for compact internal applications
• Dual edge card interface supporting high-density connections
• Vertical mounting orientation for space-constrained assemblies

Edgeboard Connectors Applications

• Internal input/output interconnects in electronic systems
• High-density board-to-board or cable-to-board connections
• Compact industrial or commercial equipment requiring vertical integration

Edgeboard Connectors Procurement Notes

Verify the exact pin count and contact plating specifications against the official datasheet before procurement. Confirm that the vertical mounting style aligns with the mechanical constraints of the target assembly. Ensure compatibility with the specific MCIO standard requirements for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density, vertically mounted solution is required for internal I/O interfaces. Consider the dual edge card form factor for space efficiency. Evaluate the gold contact plating for corrosion resistance needs. Verify that the 124-position capacity meets the signal routing requirements of the system design.

Edgeboard Connectors Part Context

This part belongs to the Mini Cool Edge IO series by TE Connectivity AMP Connectors. It is categorized under internal I/O connectors, distinct from general-purpose terminal blocks or D-sub connectors. The series focuses on integrated solutions for modern electronic packaging needs.

Edgeboard Connectors Replacement Considerations

Check for active status availability as some sources indicate potential discontinuation. Review the 1-2381578-7 variant for potential functional equivalence or updated manufacturing status if direct supply is unavailable.
