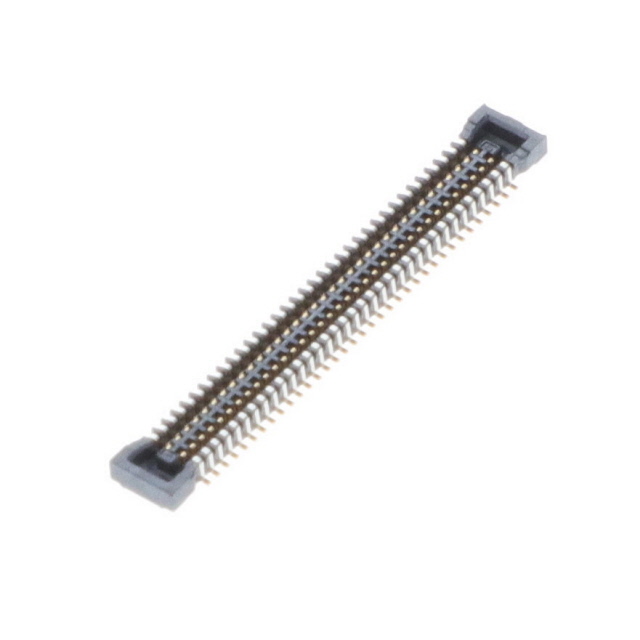

Arrays, Edge Type, Mezzanine (Board To Board) 245804070100829+ product image

245804070100829+

$1.07

Description：RECPT - 0.4MM PITCH - 70 POS - 0
Series：Super Microleaf 5804, Kyocera
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9a25fb433d28 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: KYOCERA AVX

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

245804070100829+ is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is RECPT - 0.4MM PITCH - 70 POS - 0. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 245804070100829+

Description：RECPT - 0.4MM PITCH - 70 POS - 0
Series：Super Microleaf 5804, Kyocera
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：70
Pitch：0.016" (0.40mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：-
Mated Stacking Heights：0.9mm
Height Above Board：0.033" (0.84mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 245804070100829+

245804070100829+
