246411067401894M

Edgeboard Connectors Overview

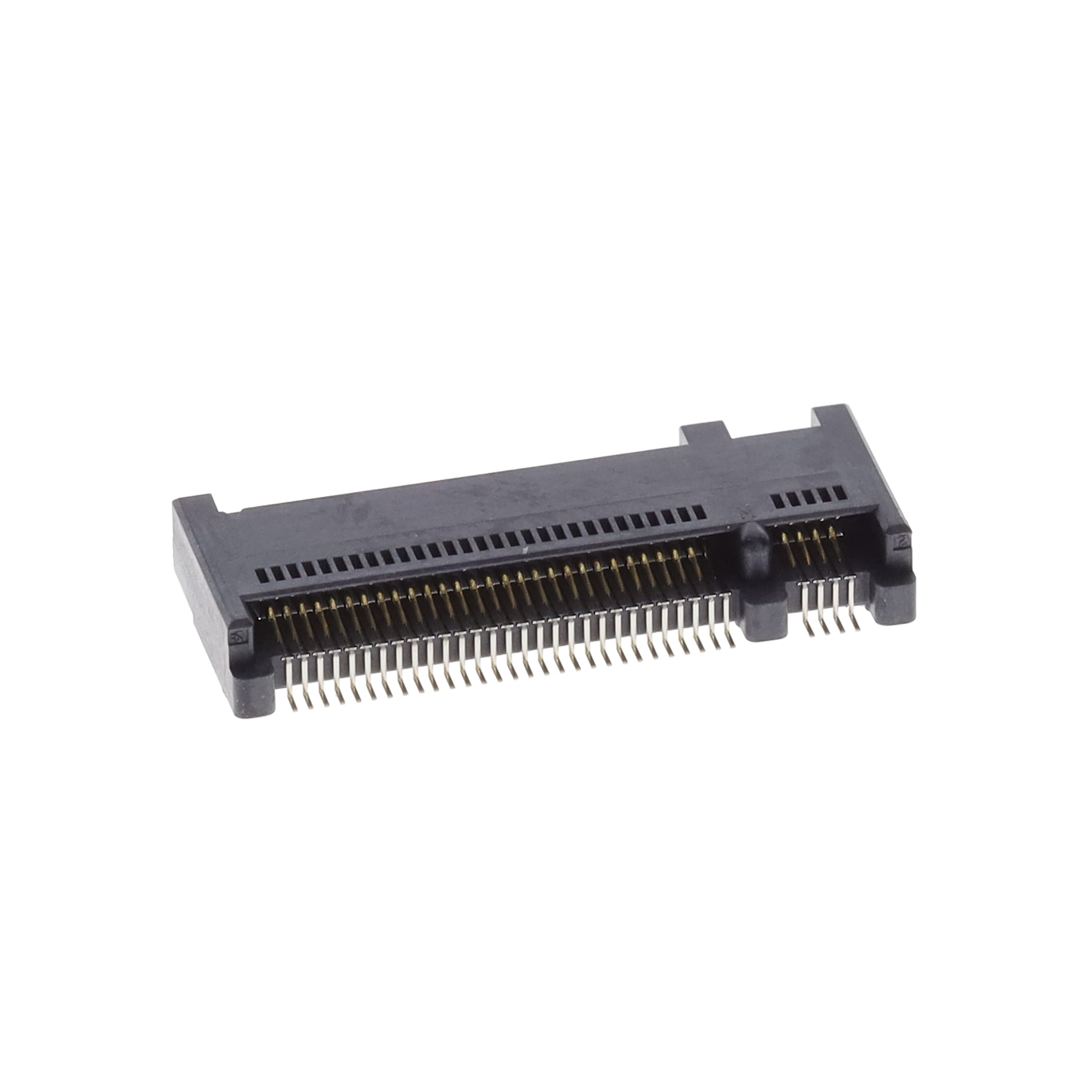

The KYOCERA AVX 246411067401894M is a PCI Express female card edge connector from the 6411 series. It features 67 positions with a 0.020-inch (0.50mm) pitch and double row configuration. The contacts are gold-plated copper alloy with a 2.00µin thickness, housed in a black plastic insulator. Designed for surface mount installation at right angles, it operates within a -40°C to 80°C range and meets RoHS3 standards.

Edgeboard Connectors Feature Summary

• Right-angle surface mount design for PCB integration
• Gold-plated contacts ensuring reliable signal transmission
• Integrated board guide rails with marking for alignment

Edgeboard Connectors Applications

• PCI Express memory card interfaces
• High-speed data transmission modules
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation color variations. Ensure compatibility with standard M.2 or PCIe slot dimensions. Confirm moisture sensitivity level requirements during storage and handling procedures before assembly.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high-density interconnects with precise positioning. The right-angle form factor aids in space-constrained layouts. Verify that the mating card edge thickness aligns with the connector's mechanical specifications for secure engagement.

Edgeboard Connectors Part Context

This part belongs to the 6411 series of card edge connectors manufactured by KYOCERA AVX. The series focuses on providing robust connectivity solutions for high-speed digital applications, emphasizing reliability and compact form factors for modern electronic systems.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 6411 series variants for different pin counts or keying options. Ensure substitute parts maintain identical pitch, row count, and mounting orientation to preserve mechanical fit and electrical continuity.
