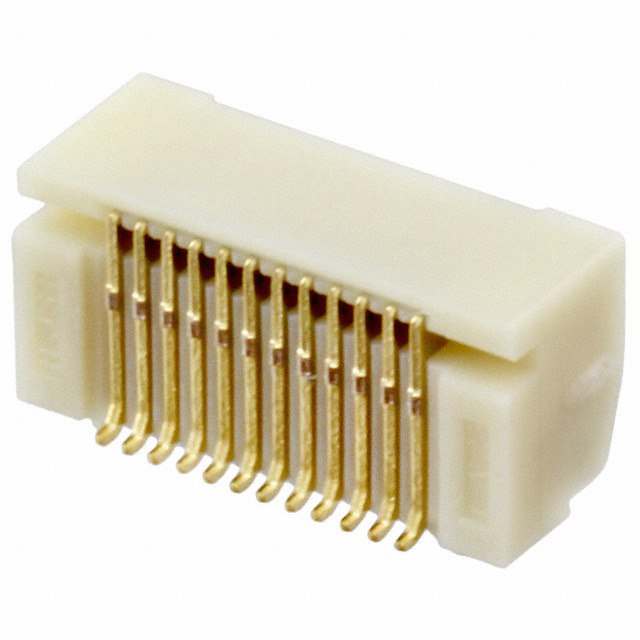

24PS-JMCS-G-1B-TF(N)(LF)(SN)

24PS-JMCS-G-1B-TF(N)(LF)(SN) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JST Sales America Inc.. Its product description is CONN PLUG 24POS R/A SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 24PS-JMCS-G-1B-TF(N)(LF)(SN)

• Description：CONN PLUG 24POS R/A SMD GOLD
• Series：JMC
• Mfr：JST Sales America Inc.
• Package：Tape & Reel (TR)
• Connector Type：Plug, Outer Shroud Contacts
• Number of Positions：24
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle
• Features：Board Guide, Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：-
• Mated Stacking Heights：-
• Height Above Board：0.170" (4.33mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 24PS-JMCS-G-1B-TF(N)(LF)(SN)
