25QHTF57-49.600-PD

Oscillators Overview

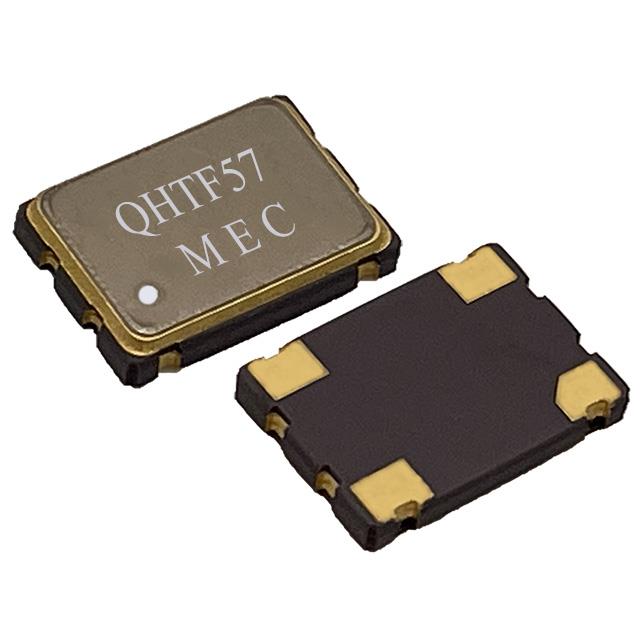

The 25QHTF57-49.600-PD is a standard crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a nominal frequency of 49.6 MHz and utilizes LVCMOS output logic. The device is designed for surface mount applications, featuring a 4-SMD, No Lead package configuration. It supports a supply voltage of 2.5V and includes a standby function for power down control. This component serves as a precise clock source for digital circuits requiring stable frequency generation.

Oscillators Feature Summary

• Provides stable clock signals using LVCMOS output logic
• Supports power management through standby mode capability
• Designed for compact surface mount integration

Oscillators Applications

• Digital circuit clock sourcing
• Data communication interfaces
• Embedded system timing references

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required voltage levels and enable/disable pin configurations. Confirm that the 4-SMD package dimensions align with the target PCB footprint. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the operating temperature range meets the system requirements.

Oscillators Selection Notes

Select this model when a 49.6 MHz frequency is specifically required for LVCMOS compatible designs. Consider the 2.5V supply constraint against available power rails in the target application. Evaluate the need for standby functionality versus continuous operation. Compare package size constraints against alternative oscillator families from the same manufacturer.

Oscillators Part Context

Mercury Electronics Ind. Co. Ltd has established itself as a pioneer in the quartz crystal industry since 1973. The company specializes in manufacturing frequency control products, leveraging decades of expertise in Taiwan. This oscillator belongs to their broader portfolio of precision timing components designed for various electronic applications.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements only through official Mercury Electronics catalogs or authorized distributor cross-reference tools.
