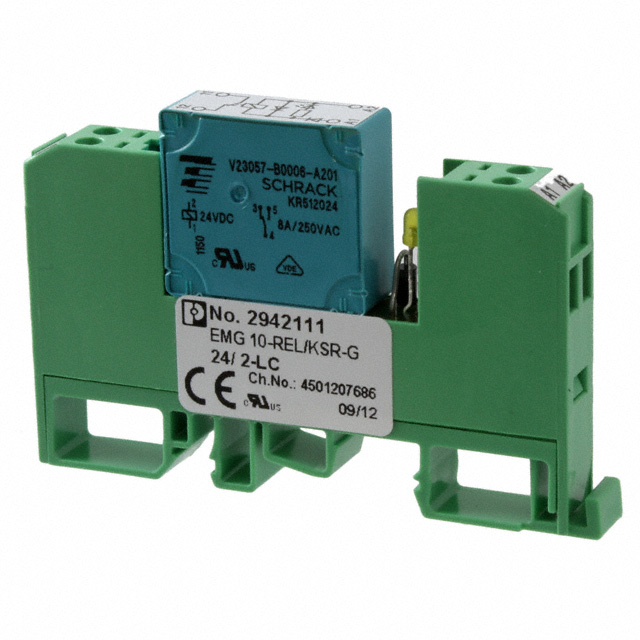

2942111

2942111 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is RELAY GEN PURPOSE SPST 6A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 2942111

• Description：RELAY GEN PURPOSE SPST 6A 24V
• Series：EMG 10-REL
• Mfr：Phoenix Contact
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：24VDC
• Contact Form：SPST-NC (1 Form B)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：250VAC, 250VDC - Max
• Load - Max Switching：1500VA, 140W
• Coil Current：21 mA
• Coil Type：Non Latching
• Features：Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-20°C ~ 40°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：cULus, EAC, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：7 ms
• Release Time：11 ms

Power Relays, Over 2 Amps datasheet and documents for 2942111
