2PH2R-16-UA

Headers, Male Pins Overview

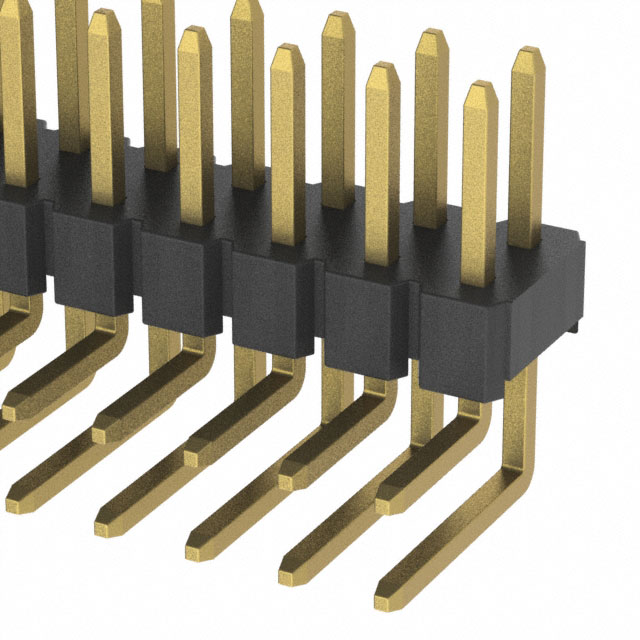

The Adam Tech 2PH2R-16-UA is a right-angle board connector featuring 16 contacts arranged in two rows with a 0.1-inch pitch. It utilizes male brass contacts with gold over nickel plating and solder terminals for surface or through-hole mounting. The insulator is black glass-filled polybutylene terephthalate, providing high insulation resistance and dielectric strength of 1000VAC.

Headers, Male Pins Feature Summary

• Right-angle configuration for space-efficient PCB layout
• Gold over nickel contact plating for reliable conductivity
• Breakaway design allows for custom sizing
• Compatible with industry standard .100 inch pitch headers

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'UA' confirms gold over nickel plating on mating areas. Ensure the required contact count matches the 16-position variant. Confirm right-angle orientation aligns with the mechanical assembly constraints before ordering.

Headers, Male Pins Selection Notes

Select this component when a dual-row right-angle header is required. The gold plating offers superior corrosion resistance compared to tin options. Verify that the 0.1-inch pitch spacing meets the target PCB footprint requirements.

Headers, Male Pins Part Context

This part belongs to the Adam Tech PH Series pin headers. The series offers single, dual, and three-row configurations in straight or right-angle styles. These connectors are designed to be cut to exact sizes as required by the application.

Headers, Male Pins Replacement Considerations

Compatible with all industry standard .100 inch pitch pin headers. Verify that substitute parts maintain the same right-angle orientation and dual-row structure to ensure mechanical fit.
