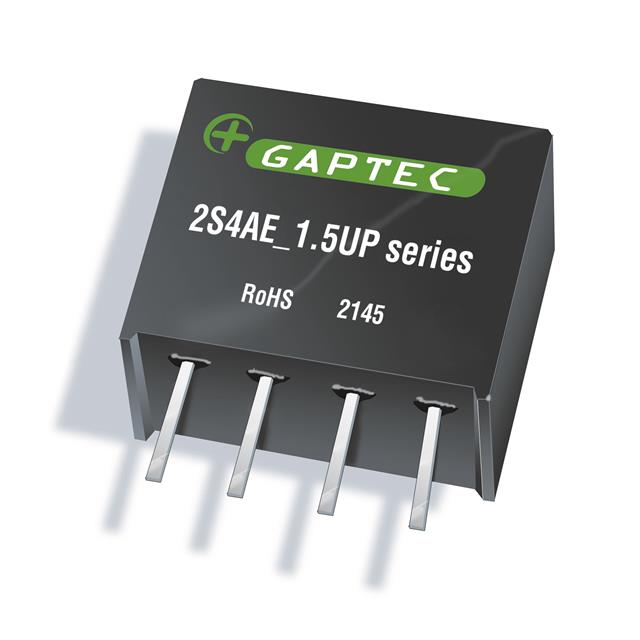

2S4AE_0509S1.5UP

2S4AE_0509S1.5UP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 2S4AE_0509S1.5UP

• Description：DC-DC INDUSTRIAL
• Series：2S4AE_1.5UP (2W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：222mA
• Power (Watts)：1.998 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 2S4AE_0509S1.5UP
