3-2337939-2

Edgeboard Connectors Overview

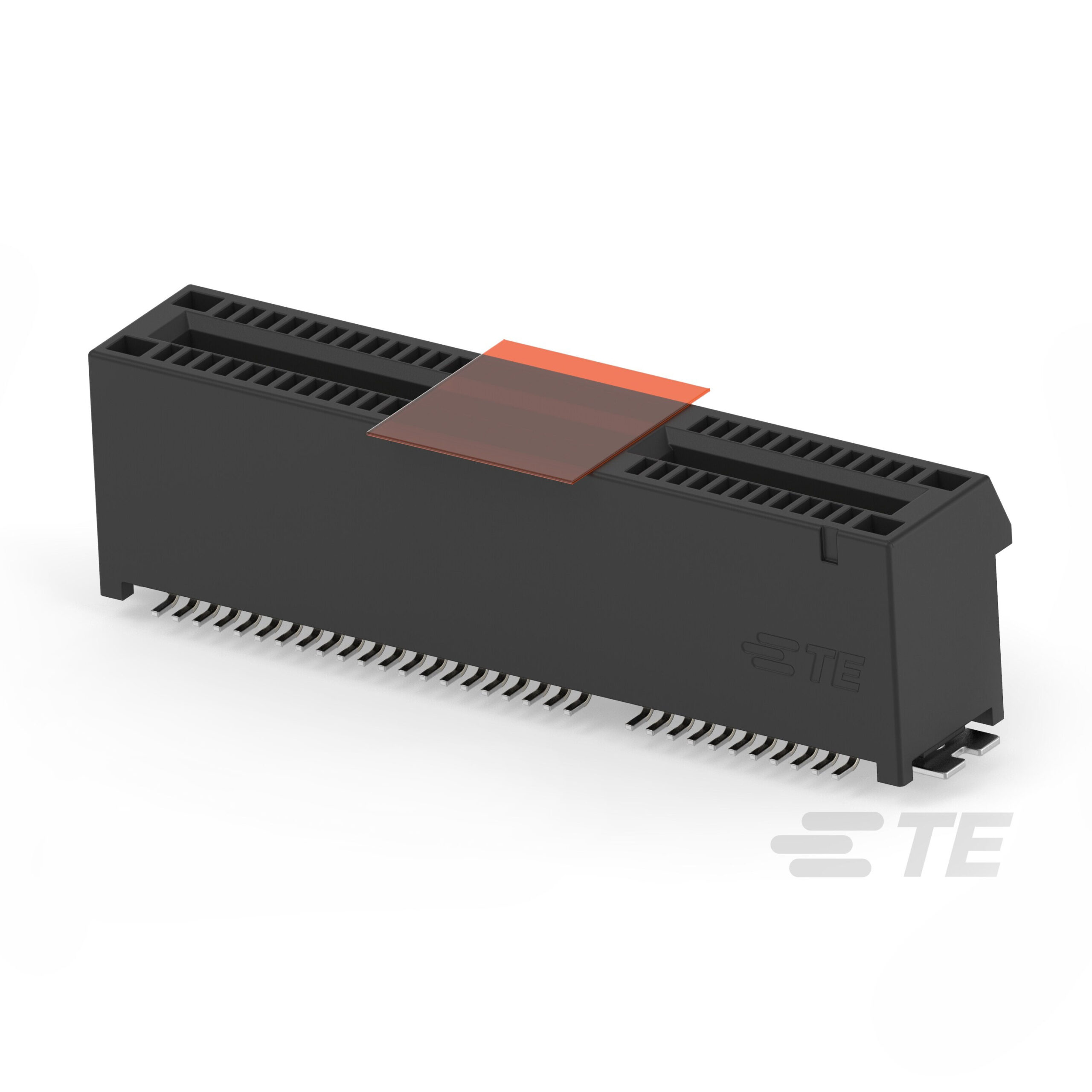

The 3-2337939-2 is a standard card edge connector designed for PCI Express applications. It features 64 positions with a 0.039 inch (1.00 mm) pitch. The component utilizes gold-plated copper alloy contacts to ensure superior conductivity and reliable signal transmission. It is configured as a female receptacle with dual read-out capability, supporting high-speed data interfaces required by modern computing systems.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide superior conductivity
• Dual read-out capability supports complex interface requirements
• Female receptacle configuration ensures secure mating

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-speed data interface modules
• Computer peripheral hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and material specifications. Ensure compatibility with the target PCB stack-up and mating connector dimensions. Confirm RoHS compliance status and moisture sensitivity level prior to assembly integration.

Edgeboard Connectors Selection Notes

Select this component when a 64-position female connector with a 1.00 mm pitch is required for PCI Express designs. The gold-plated contacts are suitable for applications demanding low contact resistance and high durability. Evaluate the dual read-out feature against system architecture needs.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors standard card edge connector family. It is specifically engineered for PCI Express generation interfaces. The design focuses on maintaining signal integrity in high-density electronic assemblies while providing robust mechanical retention during operation.

Edgeboard Connectors Replacement Considerations

Cross-reference with 3-2337939-3 for alternative configurations within the same product line. Verify pin count and pitch compatibility before substituting. Consult official documentation to ensure functional equivalence in the target application.
