3-2337939-7

$6.91

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:5240c3565988 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3-2337939-7 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 98POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 3-2337939-7

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 38
Number of Positions：98
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 3-2337939-7

3-2337939-7

Edgeboard Connectors Overview

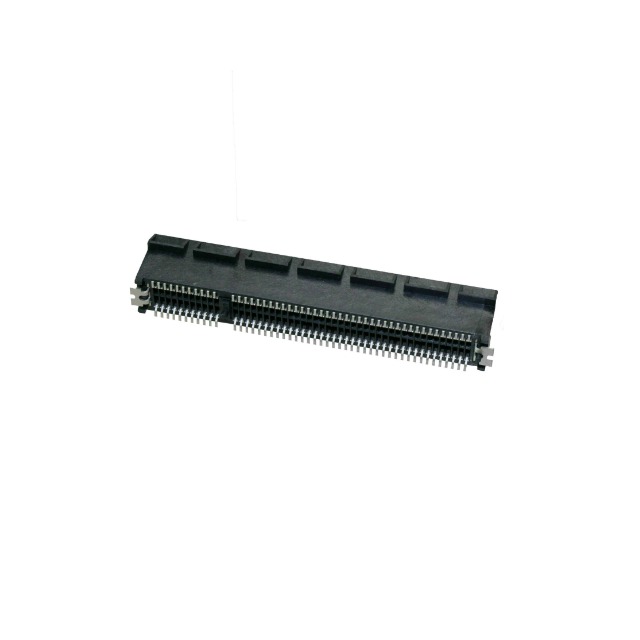

The 3-2337939-7 is a PCI Express card edge connector manufactured by TE Connectivity AMP Connectors. It features a female contact configuration with 98 positions and a 0.039 inch (1.00mm) pitch. The component is designed for high-speed data transmission in computer add-in cards, utilizing gold-plated contacts to ensure reliable signal integrity.

Edgeboard Connectors Feature Summary

Designed for high-speed data transmission applications
Female contact configuration for secure mating
Gold-plated contacts for enhanced conductivity

Edgeboard Connectors Applications

Computer add-in cards
High-speed data transmission systems
PCI Express interface implementations

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin count and plating specifications. Ensure compatibility with PCB stack-up requirements for card edge connectors. Confirm RoHS compliance status through official documentation before integration into final assemblies.

Edgeboard Connectors Selection Notes

Select this component when a 98-position female connector is required for PCI Express applications. Consider the 1.00mm pitch for board layout constraints. Evaluate mechanical retention needs against standard card edge mounting configurations.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio of edgeboard connectors. It serves as a specialized interconnect solution for digital electronics requiring robust PCIe connectivity. The product line supports various industrial and computing hardware designs.
