3-2349820-3

Edgeboard Connectors Overview

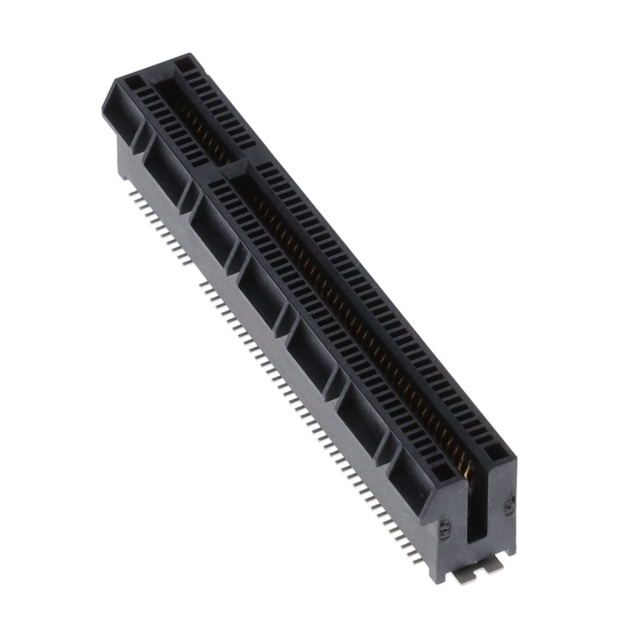

The TE Connectivity AMP Connectors part number 3-2349820-3 is a board-to-board connector designed for PCI Express applications. It features 98 positions arranged in two rows with a 1 mm centerline spacing. The connector utilizes gold-plated contacts and is housed in a black insulator. It is designed for vertical mounting on printed circuit boards, providing reliable signal and power transmission between PCBs.

Edgeboard Connectors Feature Summary

• Designed for high-speed data and power transmission in PCI Express Generation 4 environments
• Features gold-plated contacts to ensure reliable electrical connectivity
• Vertical board-to-board configuration for efficient space utilization

Edgeboard Connectors Applications

• High-speed data transmission between PCBs
• Power distribution in electronic assemblies
• PCI Express Generation 4 compliant systems

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact plating requirements against your design specifications before procurement. Ensure compatibility with the target PCB layout and mating connector standards. Confirm that the vertical orientation aligns with your mechanical assembly constraints. Cross-reference the official datasheet for precise dimensional tolerances and thermal characteristics to guarantee proper integration into the final product.

Edgeboard Connectors Selection Notes

Select this component when a 98-position vertical interconnect solution is required for PCI Express applications. Consider the 1 mm pitch and dual-row layout for density needs. Evaluate the gold contact finish for corrosion resistance and conductivity requirements. Assess the vertical form factor against available board space and mating height restrictions within the system architecture.

Edgeboard Connectors Part Context

This connector belongs to the PCI & PCI Express Connectors category from TE Connectivity AMP Connectors. It serves as a critical interface component for modern computing and communication hardware requiring robust board-to-board connections. The part supports the structural and electrical demands of advanced peripheral interconnect standards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Consult the manufacturer's official cross-reference tools or datasheets for verified compatible alternatives if this specific part number is unavailable.
