3-2349820-8

Edgeboard Connectors Overview

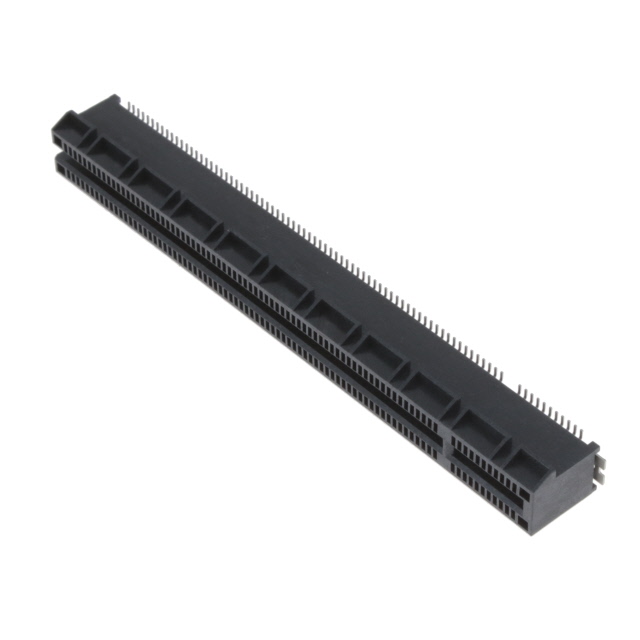

The 3-2349820-8 is a 164-position female edgeboard connector manufactured by TE Connectivity AMP Connectors. Designed for PCI Express applications, it features gold-plated contacts and a black housing. The connector utilizes a 0.039-inch (1.00mm) pitch to ensure precise signal transmission in high-density electronic systems.

Edgeboard Connectors Feature Summary

• Gold-plated contact surfaces for reliable conductivity
• Female terminal configuration for secure mating
• Black thermoplastic housing construction

Edgeboard Connectors Applications

• PCI Express peripheral interconnects
• High-speed digital data transmission boards
• Computer hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging format against the manufacturer's latest documentation before ordering. Confirm that the 164-pin count aligns with the target PCB layout requirements. Ensure compatibility with standard PCI Express mechanical constraints and mating force specifications defined in the official datasheet.

Edgeboard Connectors Selection Notes

Select this component when a 1.00mm pitch female edge connector is required for PCI Express architectures. Evaluate the 164-position capacity against system pinout needs. Consider the gold plating for corrosion resistance in demanding environments compared to tin alternatives.

Edgeboard Connectors Part Context

This part belongs to the card edge connector family within the TE Connectivity portfolio. It serves as a critical interface between circuit boards and backplanes or riser cards. The design supports modern computing standards requiring robust electrical connections.

Edgeboard Connectors Replacement Considerations

Consult the official cross-reference guide for verified substitute part numbers. Ensure any alternative maintains the 1.00mm pitch and 164-position configuration to guarantee mechanical fit and electrical continuity.
