3-2362375-2

Edgeboard Connectors Overview

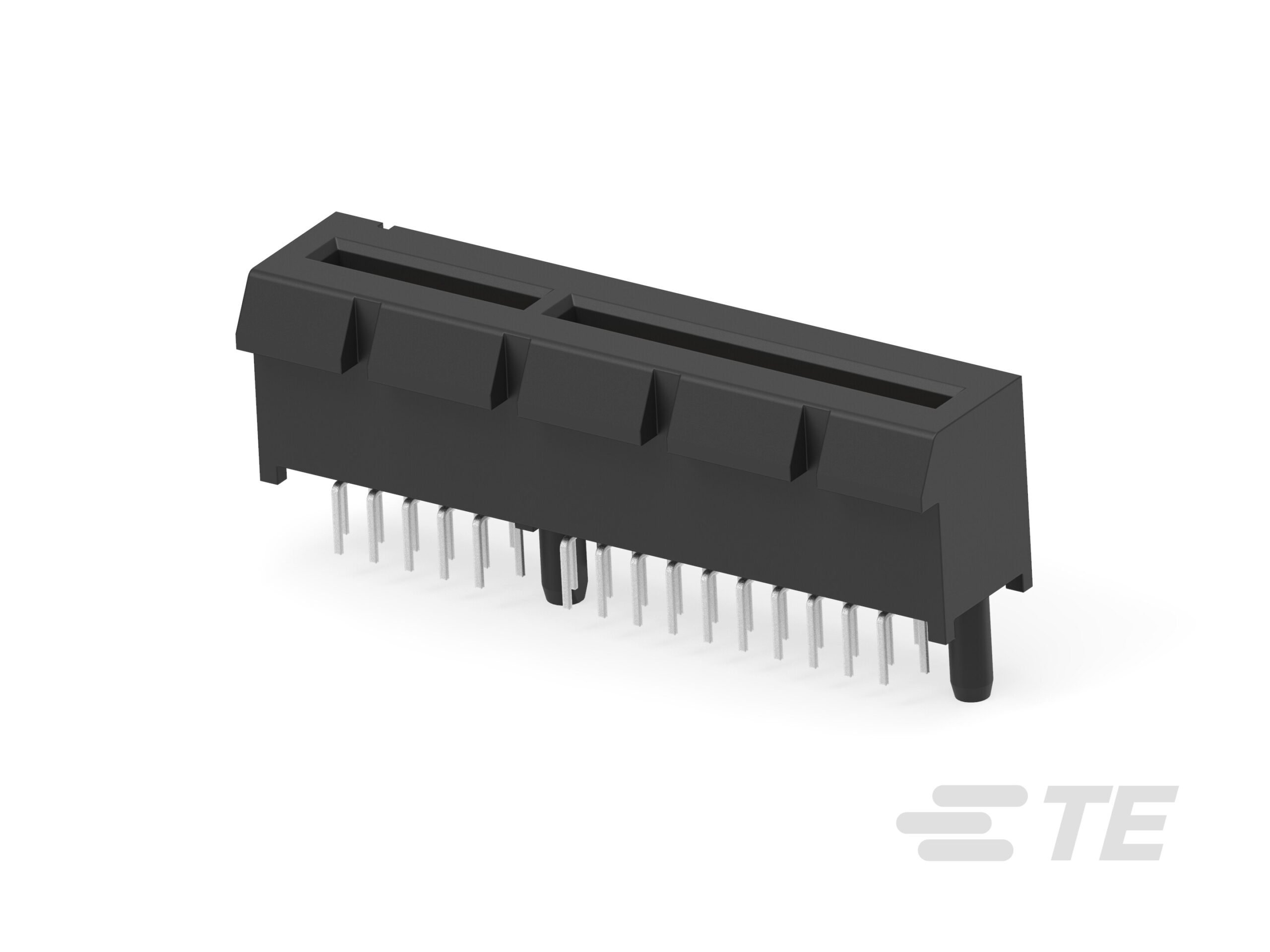

The 3-2362375-2 is a 64-position female PCI Express card edge connector manufactured by TE Connectivity AMP Connectors. It features a 0.039-inch (1.00mm) contact pitch and utilizes gold-plated contacts for reliable signal transmission. The housing material is thermoplastic, designed to operate within a temperature range of -40°C to +85°C. This component is specifically engineered for high-speed data applications compliant with PCI Express standards.

Edgeboard Connectors Feature Summary

• Designed for high-speed data transmission in computing applications
• Gold-plated contacts ensure reliable electrical performance
• Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

• PCI Express Gen 4 computing systems
• High-speed data transmission modules
• Server and workstation hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging configuration directly with authorized distributors or the manufacturer before ordering. Confirm that the procurement channel is an authorized source to ensure product authenticity and compliance with RoHS regulations. Cross-reference the full part number to avoid confusion with similar series components.

Edgeboard Connectors Selection Notes

Select this connector when a 64-position female interface with a 1.00mm pitch is required for PCI Express applications. Ensure the mating card edge thickness and mechanical constraints align with the connector's specifications. Consider the operating temperature range and material compatibility with the assembly environment during the design phase.

Edgeboard Connectors Part Context

This component belongs to the PCI Express connector family from TE Connectivity AMP Connectors. It serves as a critical interconnect solution for modern electronic devices requiring robust high-speed data pathways. The design supports standard industry protocols for reliable communication between cards and backplanes.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative sources.
