302-048-258-201

$4.05

Description：302 SERIES (.05" (1.27MM) CONTAC
Series：302
Mfr：EDAC Inc.
Package：Tube

SKU:33c1aa568974 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

302-048-258-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 302 SERIES (.05" (1.27MM) CONTAC. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 302-048-258-201

Description：302 SERIES (.05" (1.27MM) CONTAC
Series：302
Mfr：EDAC Inc.
Package：Tube
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：48
Card Thickness：0.051" ~ 0.071" (1.30mm ~ 1.80mm)
Number of Rows：2
Pitch：0.050" (1.27mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 302-048-258-201

302-048-258-201

Edgeboard Connectors Overview

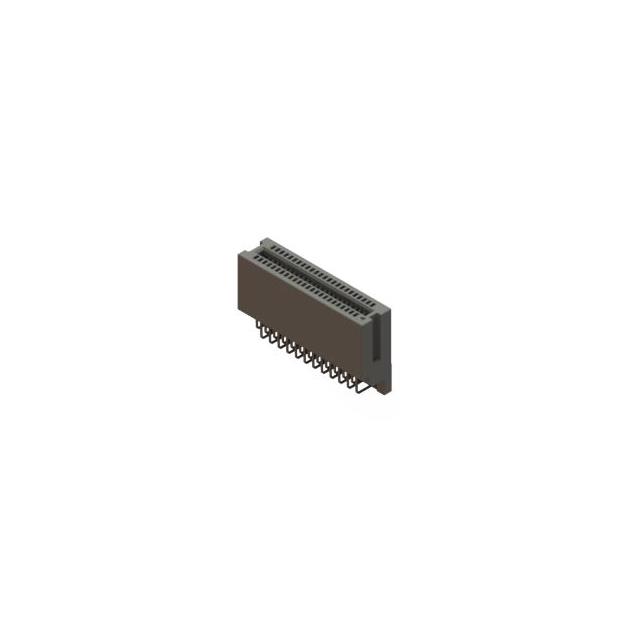

The EDAC Inc. 302-048-258-201 is a 48-position female card edge connector from the 302 Series, designed for dual-edge board interfaces. It features a 0.050" (1.27mm) contact spacing and gold flash plated contacts on a black insulator. The connector supports right-angle mounting with solder termination. It accommodates card thicknesses of 0.051" to 0.071" (1.30mm to 1.80mm). The unit operates within a temperature range of -55°C to 85°C and utilizes a copper alloy contact material.

Edgeboard Connectors Feature Summary

Dual-edge configuration for secure interface with non-specified cards
Gold flash plating ensures reliable signal transmission
Right-angle design facilitates compact circuit board integration

Edgeboard Connectors Applications

Industrial electronic equipment interconnects
General-purpose circuit board connections
Signal transmission in modular hardware systems

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required pin count and contact spacing. Confirm the right-angle orientation aligns with the mechanical layout requirements. Ensure the target PCB supports the specified solder termination method. Check compatibility with the intended card thickness range before finalizing the procurement order.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for dual-edge cards. The 0.050" pitch allows for significant I/O density in constrained spaces. The gold finish provides durability against corrosion. Consider the right-angle form factor if vertical clearance is limited or specific routing paths are necessary.

Edgeboard Connectors Part Context

This part belongs to the EDAC 302 Series, which specializes in standard card edge connectors. The series offers various position counts and configurations. The 302-048 variant specifically addresses applications requiring 48 connection points. It represents a standard solution for robust electrical interfacing in commercial electronics.
