302-060-258-201

Edgeboard Connectors Overview

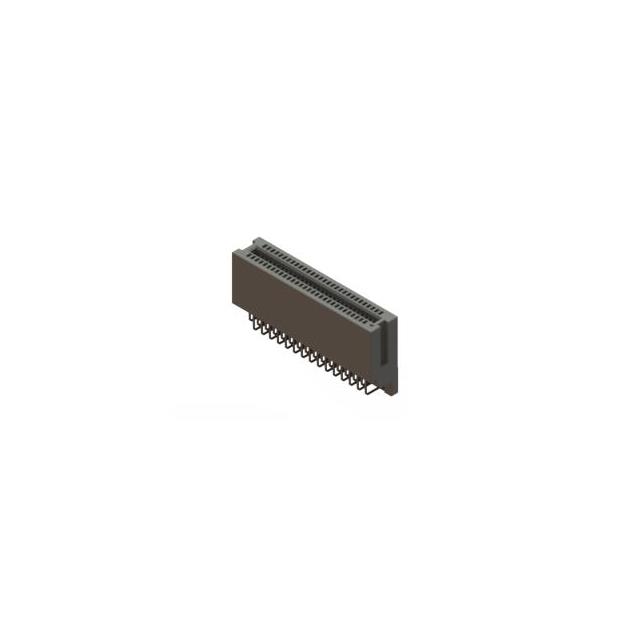

The EDAC Inc. 302-060-258-201 is a standard card edge connector from the 302 series, designed for dual-edge board applications. It features 60 positions with a 0.050-inch (1.27mm) contact spacing arranged in two rows. The connector utilizes gold flash plated cantilever contacts and a black polyamide housing. It supports card thicknesses ranging from 0.051 to 0.071 inches (1.30mm to 1.80mm). The component operates within a temperature range of -55°C to 85°C and employs a through-hole termination method.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 60 gold-plated cantilever contacts
• Compatible with non-specified dual-edge cards
• Polyamide housing with no mounting lugs
• Extender board tails for secure connection

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Medical interconnect solutions
• General-purpose electronic assemblies

Edgeboard Connectors Procurement Notes

Verify part availability through authorized distributors as supply status may vary. Confirm that the specific ordering suffix matches the required right-angle or straight configuration if applicable. Ensure compatibility with existing PCB layout requirements regarding contact spacing and row count before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this model for applications requiring high-density connections on dual-edge boards. The 0.050-inch pitch allows for compact designs while maintaining reliable signal integrity. Consider the operating temperature range and material specifications to ensure suitability for the intended environmental conditions and mechanical constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series of standard card edge connectors. The series is characterized by its fine 0.050-inch pitch and robust construction suitable for various industrial and commercial applications. Similar models in the series offer different pin counts and configurations to meet diverse connectivity needs.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 302 series variants with matching pin counts and pitch, such as 302-040-258-201 or 302-080-258-201, provided they meet the specific electrical and mechanical requirements of the design.

Edgeboard Connectors FAQ

What is the contact type for this connector?

The connector uses cantilever beam contacts.

Is this connector compatible with single-edge cards?

No, it is designed specifically for non-specified dual-edge cards.
