302-060-658-201

Edgeboard Connectors Overview

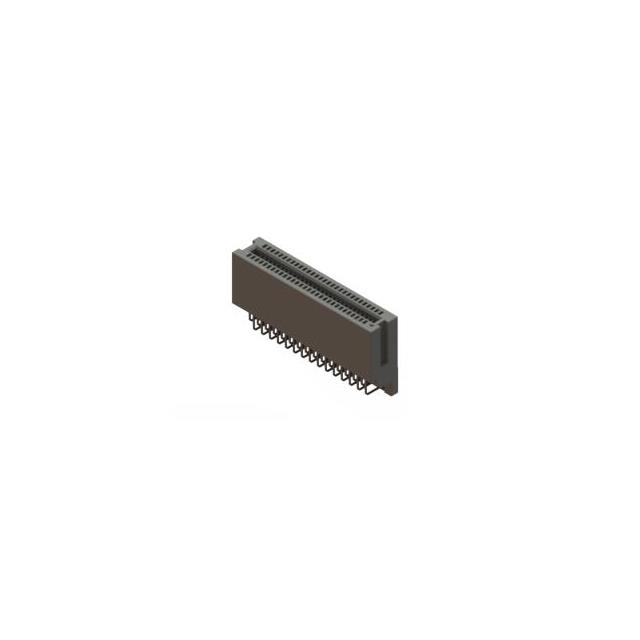

The EDAC Inc. 302-060-658-201 is a standard card edge connector from the 302 series, designed for dual-edge board applications. It features 60 positions with a 0.050 inch (1.27mm) contact spacing. The connector utilizes gold-plated contacts and is housed in black thermoplastic material. It supports a card thickness range of 0.051 to 0.071 inches (1.30mm to 1.80mm). This component is configured as a female connector with right-angle termination, suitable for reliable signal transmission in electronic assemblies requiring high-density interconnects.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with 60 positions for high-density connections
• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• Right-angle termination facilitates compact board layout integration
• Compatible with specified card thickness range for secure mechanical fit

Edgeboard Connectors Applications

• High-density electronic assembly interconnects
• Industrial control system module connections
• Telecommunications equipment backplane interfaces
• Medical device internal circuit board linking

Edgeboard Connectors Procurement Notes

Verify part authenticity through authorized EDAC distributors or official channels. Confirm that the received component matches the 302-060-658-201 designation, including correct pin count, gold plating finish, and right-angle housing orientation. Ensure compliance with RoHS standards if required by your manufacturing specifications. Check for any specific handling instructions regarding ESD sensitivity during storage and installation.

Edgeboard Connectors Selection Notes

Select this connector when a 60-position dual-edge interface with 1.27mm pitch is required. The right-angle design is optimal for space-constrained vertical mounting scenarios. Consider the gold plating for environments demanding long-term reliability against oxidation. Verify that the target PCB card thickness falls within the 1.30mm to 1.80mm range to ensure proper engagement and mechanical stability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in standard card edge connectors with fine 1.27mm spacing. The series offers various position counts and termination styles to accommodate diverse electronic design needs. The 302-060-658-201 variant specifically addresses applications requiring a substantial number of connections in a compact footprint, leveraging EDAC's expertise in robust interconnect solutions for professional electronics.
