302-080-258-201

Edgeboard Connectors Overview

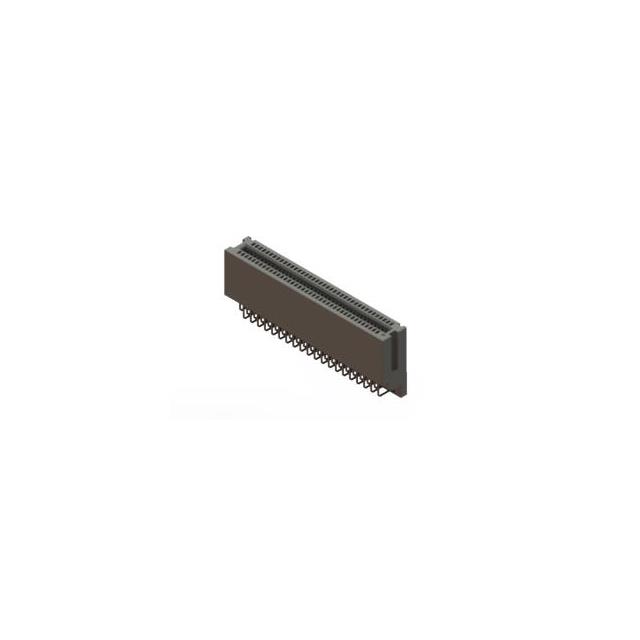

The EDAC Inc. 302-080-258-201 is a standard card edge connector from the 302 series, designed for dual-edge card applications. It features 80 positions with a 0.050" (1.27mm) contact spacing and gold flash plated contacts. The housing is black polyamide (PA66), and it utilizes right-angle staggered PCB tails for termination. This female connector supports board thicknesses of 0.051" to 0.071" (1.30mm to 1.80mm) and operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 80 gold flash plated contacts for reliable signal transmission
• Right-angle staggered PCB tails facilitate efficient board-to-board connections
• Black polyamide insulation housing provides structural stability and environmental resistance

Edgeboard Connectors Applications

• Dual-edge card interconnect systems
• Industrial control modules requiring robust connectivity
• Electronic equipment utilizing standard card edge form factors

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm mechanical variations such as mounting lugs or tail configurations. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 80-position connection is required with precise 1.27mm pitch. The right-angle design suits space-constrained vertical installations. Confirm that the target card thickness falls within the specified 1.30mm to 1.80mm range for optimal contact engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 302 series, which specializes in standard card edge connectors with 0.050" pitch. The series offers various position counts and termination styles, providing modular solutions for diverse electronic assembly needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for direct substitutes. Verify pin count, pitch, and termination style match exactly before considering alternative manufacturers.
