3020-10-0300-00

Headers, Male Pins Overview

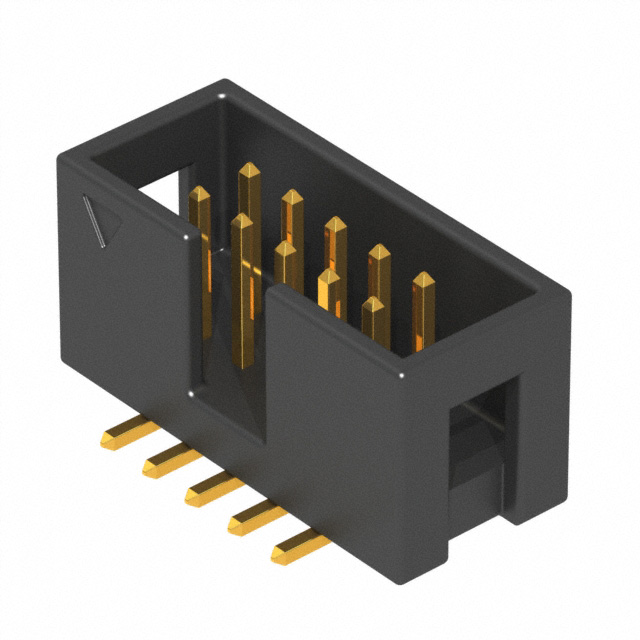

The CNC Tech 3020-10-0300-00 is a surface-mount rectangular header connector featuring 10 positions with a dual-row configuration. It utilizes a 0.100-inch (2.54mm) pitch and includes a four-wall shielded housing for enhanced protection. The contacts are gold-plated brass pins rated for 3A at AC/DC voltages, operating within a temperature range of -40°C to 105°C. Designed for ribbon cable applications, it employs a push-pull locking mechanism and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface-mount design with integrated four-wall shielding
• Gold-plated brass contacts ensuring reliable signal transmission
• Push-pull locking mechanism for secure mating
• Keyed and pick-and-place compatible construction

Headers, Male Pins Applications

• Ribbon cable interconnections in electronic assemblies
• Board-to-cable wiring systems requiring surface mounting
• Industrial control modules utilizing standardized pin layouts
• Automotive electronics harnesses needing robust connectors

Headers, Male Pins Procurement Notes

Verify the specific suffix indicates tape-and-reel packaging rather than standard tray distribution. Confirm RoHS3 compliance status matches current regulatory requirements. Check for any recent Product Change Notices affecting material composition or manufacturing origin. Ensure compatibility with automated pick-and-place equipment specifications. Validate that the four-wall shield design aligns with enclosure constraints.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface-mount header is required for ribbon cables. The 2.54mm pitch ensures broad compatibility with standard PCB footprints. Consider the four-wall shield if electromagnetic interference protection is necessary. Verify that the 3A current rating suffices for the target application's electrical load. Evaluate the push-pull lock against vibration resistance needs.

Headers, Male Pins Part Context

This part belongs to the 3020 series of IDC headers manufactured by CNC Tech. The series offers various position counts and termination styles. It serves as a standard interconnect solution for general-purpose electronic circuits. The manufacturer provides associated mating sockets and complementary hardware.

Headers, Male Pins Replacement Considerations

Cross-reference with other 10-position, 2.54mm pitch SMD headers from different manufacturers. Ensure mechanical dimensions and keying configurations match existing board layouts. Verify equivalent electrical ratings and environmental tolerances before substitution.
