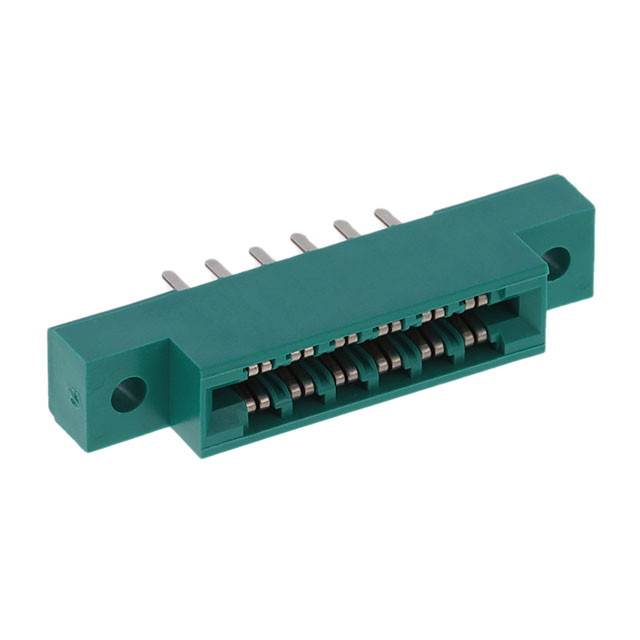

305-012-520-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-012-520-202
- Description：CONN EDGE DUAL FMALE 12POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-012-520-202
Edgeboard Connectors Overview
The EDAC Inc. 305-012-520-202 is a standard card edge connector designed for vertical panel mount applications. It features a dual-row configuration with 12 positions and a contact pitch of 3.96 mm (0.156 inches). The component utilizes gold-plated copper alloy contacts and a thermoplastic housing, supporting a PCB thickness of 1.57 mm (0.062 inches). Rated for 5 A current, it employs solder pin termination for secure board attachment.
Edgeboard Connectors Feature Summary
- Dual-edge card interface with vertical mounting orientation
- Gold-plated copper alloy contacts for reliable conductivity
- Thermoplastic housing material for structural integrity
Edgeboard Connectors Applications
- Panel-mounted electronic assemblies requiring card edge connectivity
- Industrial control systems utilizing standardized interconnects
- Communication equipment backplanes or daughter cards
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm housing color and plating specifications, as variations exist within the series. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm for proper mechanical engagement.
Edgeboard Connectors Selection Notes
Select this model when a 12-position dual-row connector with a 3.96 mm pitch is required for vertical installation. The 5 A rating and gold plating suit general-purpose industrial applications. Verify that the target PCB design accommodates the specified 1.57 mm thickness constraint for optimal contact retention.
Edgeboard Connectors Part Context
This component belongs to the EDAC 305 Series, which provides standard card edge connectors for various industrial and commercial applications. The series offers multiple position counts and row configurations, maintaining consistent pitch and termination styles across variants to simplify supply chain management for system integrators.
Edgeboard Connectors Replacement Considerations
Direct substitutes include other EDAC 305 series parts with identical 12-position, dual-row, 3.96 mm pitch specifications. Cross-manufacturer replacements require matching the 1.57 mm PCB thickness capability and vertical panel mount form factor to ensure mechanical compatibility.
