305-012-521-507

Edgeboard Connectors Overview

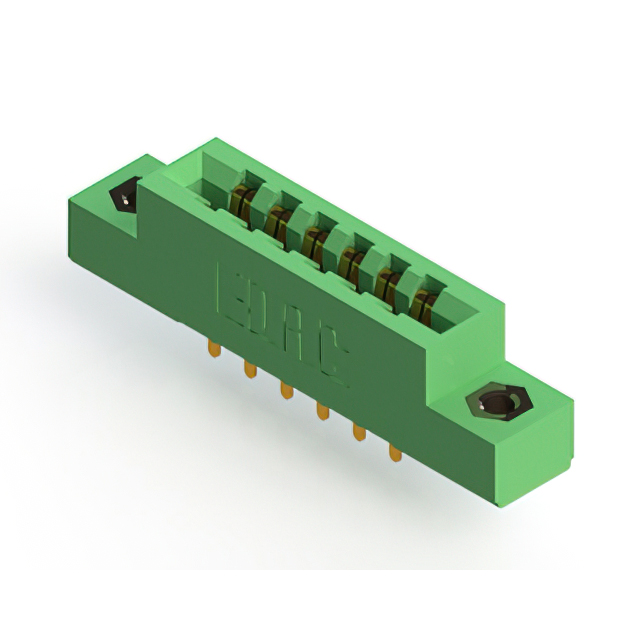

The EDAC Inc. 305-012-521-507 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual female configuration with 12 positions and a 0.156-inch (3.96 mm) pitch. The connector utilizes gold-plated copper alloy contacts with a solder pin termination type. It is rated for 5 A current and operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic polyester, supporting board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for non-specified card compatibility
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount style with solder pin termination

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm flange characteristics and terminal row alignment. Ensure the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range for proper mechanical engagement. Confirm RoHS compliance status through the manufacturer's latest environmental declaration before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for vertical panel integration. The 12-position count suits moderate density applications. Verify that the operating environment remains within the -40°C to +105°C thermal limits. Ensure the mating card material and thickness are compatible with the connector's insulator specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 305-012-521-507 specifically denotes a 12-position dual female variant. It shares common electrical ratings and material properties with other parts in the same family while differing in physical dimensions and contact count.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or flange options. Cross-reference DigiKey part number 151-305-012-521-507-ND for equivalent sourcing channels.
