305-012-555-501

Edgeboard Connectors Overview

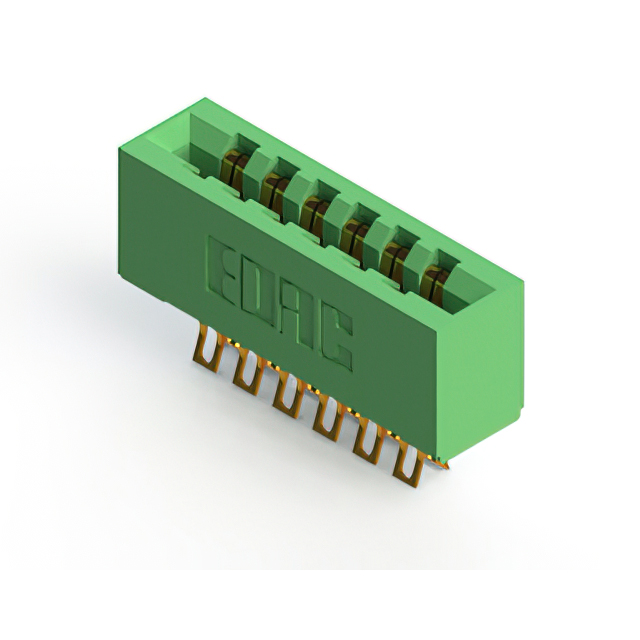

The EDAC Inc. 305-012-555-501 is a dual-edge female card edge connector from the 305 series, designed for through-hole solder termination. It features 12 positions with a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The contacts are gold-plated copper alloy, housed in a green thermoplastic insulator. Rated for 5A current at +105°C maximum operating temperature, it ensures reliable electrical performance in standard industrial applications.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts ensure low resistance and corrosion resistance
• Through-hole solder termination for robust mechanical stability
• Thermoplastic insulator body supports high-temperature operation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device internal module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to confirm plating specifications and mounting options. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status via the latest datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 12 positions and 0.156-inch pitch is required. It is suitable for applications needing through-hole mounting and gold-plated contacts. Consider the 305 series for its low-profile design and high-temperature rating up to 105°C.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various configurations including single and double rows, different contact counts, and multiple termination styles. The 305 series is widely used in general-purpose electronic assemblies requiring reliable board-to-board or board-to-backplane connections.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with identical pin counts and spacing. Verify that alternative parts match the 0.156-inch pitch and dual-edge female configuration requirements.
