305-014-520-512

Edgeboard Connectors Overview

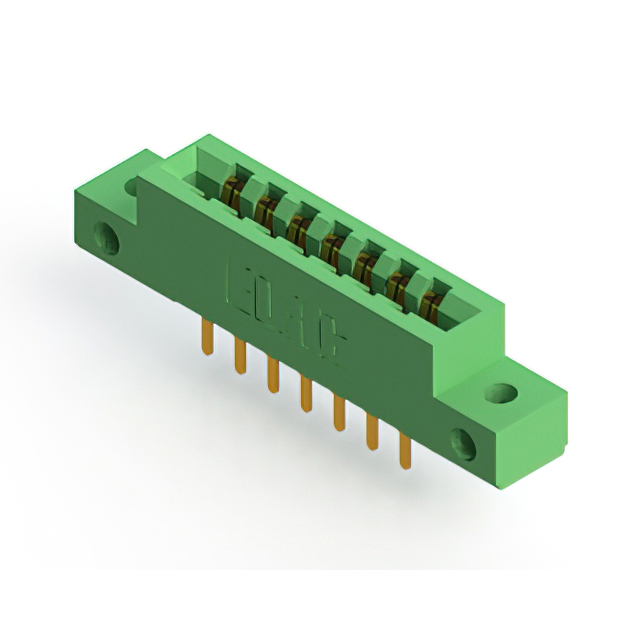

The EDAC Inc. 305-014-520-512 is a standard card edge connector designed for vertical panel mount applications. It features a dual row configuration with 14 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic insulator. It supports a nominal printed circuit board thickness of 0.062 inches (1.57 mm) and employs a solder pin termination type. The component is rated for a continuous current of 5 A and offers high voltage insulation capabilities.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Provides reliable electrical connection through gold-plated contacts
• Designed for vertical orientation to facilitate panel mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment interface modules
• Test and measurement device backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required polarizing key configurations and terminal styles. Confirm that the selected variant matches the intended PCB thickness and mounting orientation. Cross-reference the manufacturer datasheet for precise mechanical dimensions and environmental ratings before final procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 14-position interface is required for vertical panel mounting. Ensure the design accommodates the specified 0.156-inch pitch and 0.062-inch board thickness. Consider the 5A current rating and gold plating for applications demanding stable signal integrity and corrosion resistance in standard operating environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatile mounting options and standardized contact spacing. The 305-014-520-512 specifically addresses needs for compact, high-density connections in vertical orientations, serving as a critical interface element in various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with different position counts but identical pitch and mounting characteristics. Verify mechanical fit and electrical ratings when considering alternative part numbers from the EDAC 305 family or comparable industry-standard card edge connectors.
