305-014-521-208

Edgeboard Connectors Overview

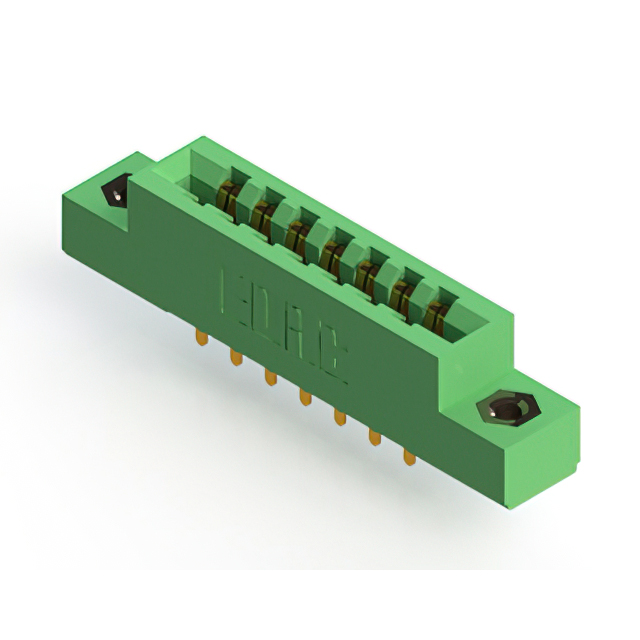

The EDAC Inc. 305-014-521-208 is a standard card edge connector from the 305 series, designed for panel and through-hole mounting. It features 14 positions arranged in a dual configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes copper alloy contacts with gold plating and accepts board thicknesses between 1.37 mm and 1.78 mm. Rated for 5 A current at +105°C maximum operating temperature, it employs solder pin termination and thermoplastic polyester insulation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount design with vertical orientation for structural stability
• Thermoplastic polyester insulation provides thermal resistance up to 105°C

Edgeboard Connectors Applications

• Industrial control system backplanes
• Medical equipment interconnects
• Agricultural technology hardware
• General-purpose electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before ordering. Confirm that the specific suffix matches the required contact finish and housing color specifications. Ensure compatibility with existing panel cutouts and PCB thickness tolerances. Check regional availability as distribution status may vary by location. Validate RoHS compliance requirements if applicable to the target assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connector with 14 positions and 3.96 mm pitch is required. Ensure the application supports panel mounting and vertical installation angles. Verify that the PCB thickness falls within the 1.37 mm to 1.78 mm acceptance range. Confirm that the 5 A current rating and 105°C temperature limit meet operational demands. Consider the green housing color if visual identification is necessary.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. EDAC specializes in interconnect solutions for medical, industrial, and agricultural sectors. The 305 series is characterized by robust construction and reliable performance in demanding environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching all electrical and mechanical parameters including pitch, position count, and mounting style.
