Edgeboard Connectors Overview

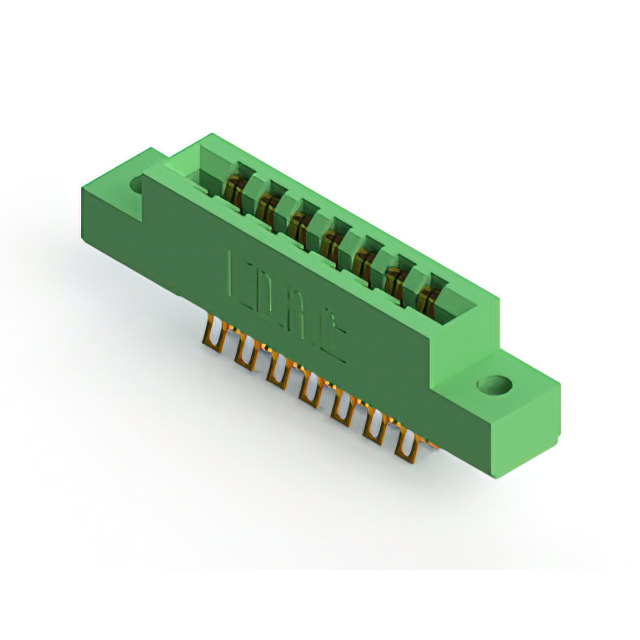

The EDAC Inc. 305-014-555-502 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 14 positions with a 3.96 mm (0.156 inch) contact spacing and 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts featuring gold plating and a green thermoplastic polyester insulator, it provides reliable electrical interconnection in panel-mounted applications.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Gold-plated copper alloy contacts ensure corrosion resistance
• Low-profile insulator body facilitates compact panel integration
• Thermoplastic polyester housing offers thermal stability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring dual-edge interface
• Industrial control systems utilizing standardized card edge modules
• Test and measurement equipment with modular board architectures

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact configuration and insulation color. Ensure the target PCB thickness aligns with the specified 1.57 mm nominal requirement. Confirm RoHS compliance status through official documentation prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for 14-position interfaces. The 3.96 mm pitch suits applications needing robust mechanical retention. Verify that the operating temperature range of -40°C to +105°C meets environmental demands. Ensure panel mounting style compatibility with the enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-014 variant specifically addresses 14-position requirements. The model number encodes key specifications including position count and contact type.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305-series parts for different position counts. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents. Ensure any alternative maintains the 3.96 mm pitch specification.
