305-016-500-201

Edgeboard Connectors Overview

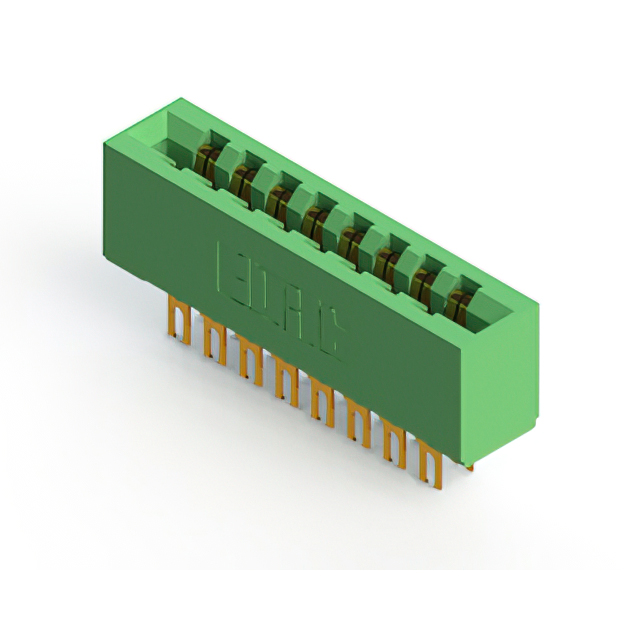

The EDAC Inc. 305-016-500-201 is a standard card edge connector receptacle featuring 16 positions with a 3.96 mm pitch. Designed for .156" x .140" green PCBs, it utilizes gold-plated copper alloy contacts and solder termination. The unit supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It employs a thermoplastic housing and offers vertical panel mounting.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity
• Vertical panel mount style facilitates integration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and termination type. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure the selected variant matches the required PCB thickness and mounting orientation specifications.

Edgeboard Connectors Selection Notes

Select this component when a 16-position vertical card edge interface is required. Verify compatibility with .156" x .140" board dimensions. Consider the 5 A current rating and operating temperature range for environmental suitability. Compare against other series members if different position counts or mounting styles are needed.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series includes various position counts and mounting configurations. The 305-016-500-201 specifically addresses applications requiring a compact 16-position vertical connection solution with standardized electrical ratings.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Cross-reference with other 305-series variants for position changes. No direct third-party substitutes are confirmed in public documentation.
