305-016-500-568

Edgeboard Connectors Overview

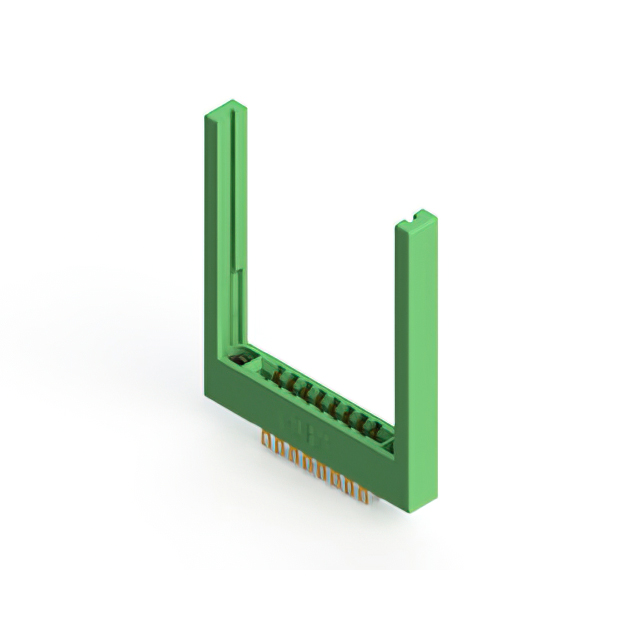

The EDAC Inc. 305-016-500-568 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 16 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Flush mount flange with top opening and threaded inserts
• Low profile insulator body constructed from thermoplastic material

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring vertical interconnects
• Industrial control systems utilizing standard thickness PCBs
• Communication equipment needing durable card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm mechanical variations such as flange threading or insulation color. Ensure the target PCB thickness aligns with the 0.062-inch nominal specification for proper engagement. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with 16 positions and 3.96 mm pitch is required. The flush mount style with threaded inserts suits panel installations where stability is critical. Consider the 5 A current rating and wide operating temperature range for robust industrial environments. Verify compatibility with the specific board thickness to ensure reliable electrical contact.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-016-500-568 specifically denotes a 16-position variant with gold plating and a green insulator. It is distinct from single-row or different pitch connectors within the broader product line.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 305 series designation and 16-position count. Verify identical 3.96 mm pitch and 0.062 inch board thickness acceptance. Check for matching flange thread specifications and current ratings to ensure functional equivalence.
