305-016-520-207

Edgeboard Connectors Overview

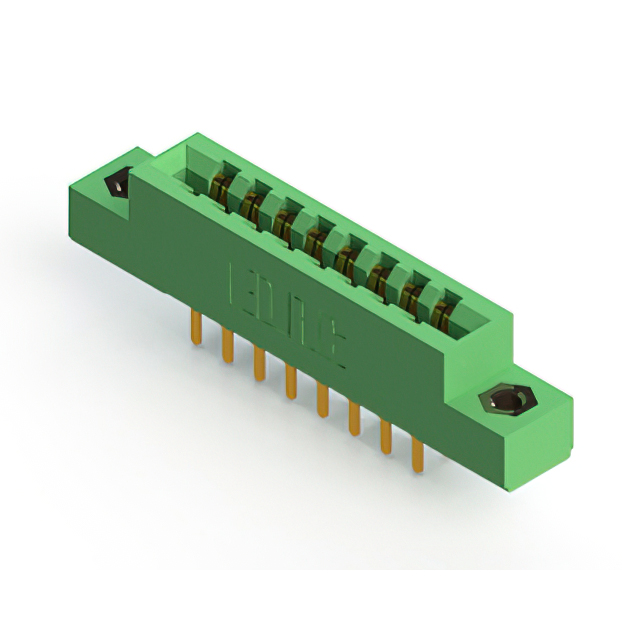

The EDAC Inc. 305-016-520-207 is a standard card edge connector header from the 305 Series, designed for vertical panel mounting. It features 16 positions with a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy with solder lug termination. Rated for 5 A continuous current and 1800 VACrms insulation, it operates between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Vertical panel mount design for robust structural integration
• Gold-plated contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Audio/Video devices
• Digital Multimeters
• PLCs (Programming Logic Controllers)
• Radar processing systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the polarizing key configuration matches your application needs. Cross-reference technical specifications such as current rating and operating temperature range with your design constraints before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a 16-position connection with a 3.96 mm pitch is required. The vertical orientation and panel mount style suit applications needing rigid mechanical support. Verify that the target PCB thickness aligns with the 1.57 mm specification and that the 5 A current rating meets circuit demands.

Edgeboard Connectors Part Context

This model belongs to the EDAC 305 Series of standard card edge connectors. The series provides various position counts while maintaining consistent 3.96 mm spacing and high reliability standards. These connectors are engineered for demanding industrial environments requiring stable electrical connections over wide temperature ranges.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same family include models like 305-018-520-207 or 305-016-520-501, provided they match the required pin count and termination style. Always verify datasheet specifications for any alternative part to ensure functional equivalence.
