305-016-521-207

Edgeboard Connectors Overview

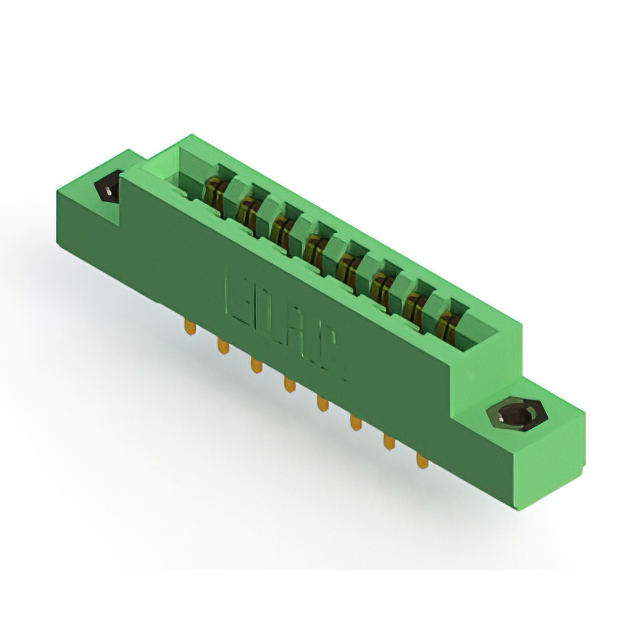

The EDAC Inc. 305-016-521-207 is a dual female card edge connector from the 305 series, designed for through-hole termination. It features 16 positions with a 0.156-inch (3.96mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are made of copper alloy with a gold plating finish, providing reliable electrical performance. Rated for 5A continuous current and 1800VACrms insulation voltage, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Accepts both between-contact and in-contact polarizing keys for secure alignment
• Dual female contact configuration ensures stable connection with card edge boards
• Gold-plated copper alloy contacts provide corrosion resistance and low contact impedance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnect solutions
• Medical equipment interfaces demanding high reliability
• Agricultural technology applications in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to ensure correct pin configuration and termination style. Confirm RoHS compliance status and environmental certifications such as REACH before finalizing procurement orders to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 0.156-inch pitch is required. Ensure the target PCB thickness falls within the specified 0.054 to 0.070-inch range. Consider the 5A current rating and 1800VACrms dielectric strength for appropriate voltage and load applications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles, widely used in industrial and medical sectors. The 305-016 variant specifically provides a compact 16-position interface suitable for dense circuit board layouts.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with identical mechanical dimensions and electrical ratings. Verify that alternative parts maintain the same 0.156-inch pitch and dual female contact type to ensure compatibility.
