305-016-555-201

Edgeboard Connectors Overview

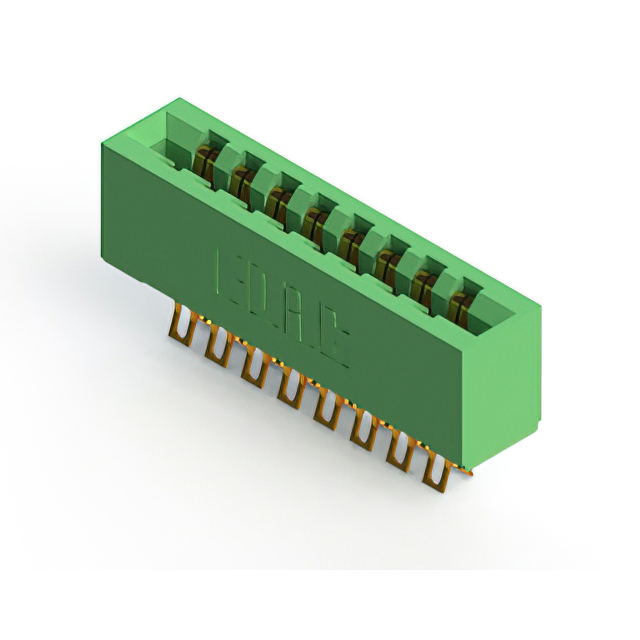

The EDAC Inc. 305-016-555-201 is a standard card edge connector from the 305 series, designed for board edge and straddle mount applications. It features 16 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a solder termination type. It is rated for 5 A continuous current and supports a voltage of 1800 VACrms. The unit operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys
• Provides secure board edge or straddle mounting
• Features gold-plated copper alloy contacts

Edgeboard Connectors Applications

• Card extender modules
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct contact configuration and plating specifications. Confirm that the polarizing key requirements match the system design. Cross-reference the datasheet for precise dimensional tolerances and mating force characteristics before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Ensure the host PCB thickness accommodates the specified mounting style. Verify that the 5 A current rating and 1800 VACrms insulation voltage meet the circuit's electrical demands. Check compatibility with available polarizing keys for proper alignment during assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting configurations. These connectors are engineered for reliable signal transmission in demanding environments. The 305 series is widely used in applications requiring robust mechanical stability and consistent electrical performance.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for alternative part numbers with different pin counts or mounting styles. Direct substitutes must maintain the 3.96 mm pitch and dual-row configuration. Verify that any replacement matches the original's voltage and current ratings.
