Edgeboard Connectors Overview

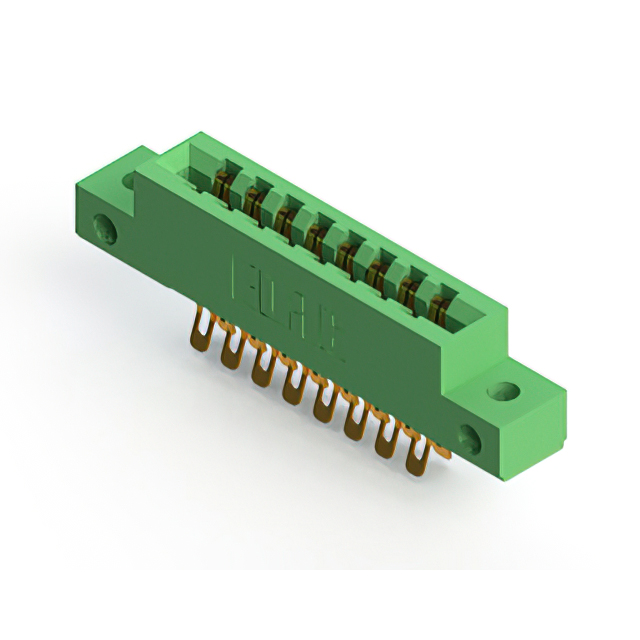

The EDAC Inc. 305-016-555-212 is a standard card edge connector designed for panel mount applications. It features a dual row configuration with 16 positions and a contact spacing of 0.156 inches (3.96 mm). The unit utilizes solder lug termination and gold-plated copper alloy contacts to ensure reliable electrical performance. The insulator body is constructed from thermoplastic material, providing structural integrity and electrical insulation. This component supports printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Provides a continuous current rating of 5A with high voltage isolation capability
• Features a low-profile insulator body suitable for space-constrained panel installations

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology hardware needing durable connectors for harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, termination style, and plating specifications. Ensure that the selected variant matches the required PCB thickness and polarizing key compatibility. Cross-reference the manufacturer part number with distributor catalogs to confirm availability and compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row card edge interface with 3.96mm pitch is required for panel mounting. Confirm that the target PCB thickness aligns with the 1.57mm nominal specification. Evaluate the need for polarizing keys to prevent misalignment during insertion. Consider the thermal operating range and current ratings to ensure suitability for the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is engineered for reliable signal and power transmission in various industrial and commercial applications. The 305 series offers multiple configurations regarding position count and termination methods, allowing for flexible integration into diverse electronic assemblies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence by matching critical parameters such as pitch, row count, termination type, and mechanical dimensions before considering alternative components.
