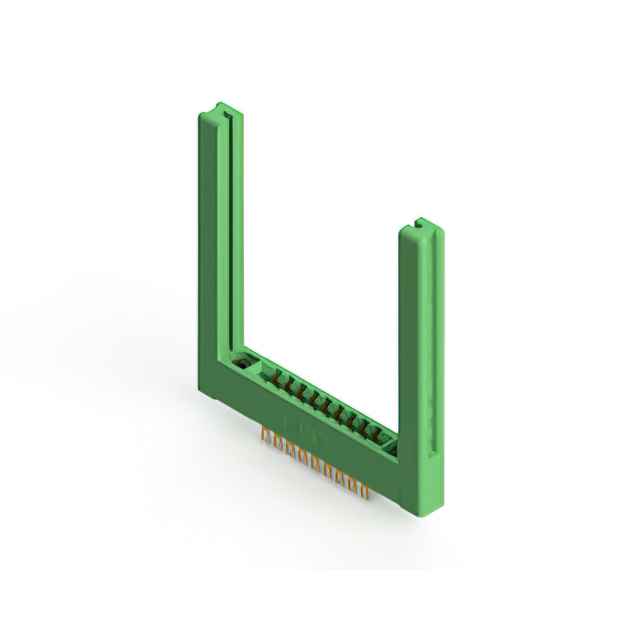

305-018-500-258

$7.54

Description：CONN EDGE DUAL FMALE 18POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:89f51106817a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-018-500-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-018-500-258

Description：CONN EDGE DUAL FMALE 18POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：9
Number of Positions：18
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-018-500-258

305-018-500-258

Edgeboard Connectors Overview

The EDAC 305-018-500-258 is a standard card edge connector header from the 305 Series. It features 18 positions with a 3.96 mm pitch and accepts PCBs up to 1.57 mm thick. Designed for panel mounting at a vertical angle, it utilizes gold-plated copper alloy contacts and solder lug termination. The unit provides a 5 A current rating and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure positioning
Vertical panel mount design ensures stable connection alignment
Gold-plated contacts provide reliable conductivity and corrosion resistance

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 18-position configuration and 3.96 mm pitch. Confirm compatibility with the target PCB thickness of 1.57 mm. Ensure the application environment falls within the specified operating temperature range. Check for any specific polarizing key requirements before finalizing the order.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount header is required for double-sided edge cards. The 3.96 mm pitch accommodates standard board widths. Consider the 5 A current rating for power distribution needs. Verify that the solder lug termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic module designs. These components are engineered for durability in demanding industrial environments.
