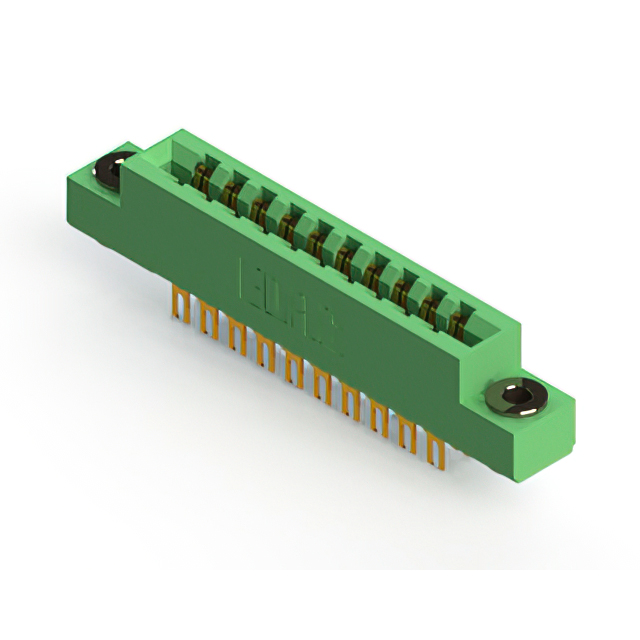

305-020-500-203

$3.97

Description：CONN EDGE DUAL FMALE 20POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Tray

SKU:a62287a3e61d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-020-500-203 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-020-500-203

Description：CONN EDGE DUAL FMALE 20POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Tray
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：10
Number of Positions：20
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-020-500-203

305-020-500-203

Edgeboard Connectors Overview

The EDAC Inc. 305-020-500-203 is a standard card edge connector featuring 20 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. Designed for PCB mount applications, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a continuous current rating of 5 A and withstands voltages up to 1800 VACrms. It accommodates board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual row female contact configuration for high-density signal routing
Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
Thermoplastic polyester housing provides structural stability and thermal endurance
Accepts between-contact and in-contact polarizing keys for secure mating

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
High-voltage circuit board connections
Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure that the required polarizing key accessories are sourced separately if mechanical locking is necessary for the assembly. Confirm compliance with RoHS3 standards prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this model when a robust 20-position interface is required for boards up to 1.57 mm thick. The 5 A current rating and 1800 VACrms insulation capability make it suitable for demanding environments. Verify that the vertical mounting style aligns with the chassis design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is engineered for durability in harsh conditions, offering consistent performance across various industrial sectors. The 305-020-500-203 variant specifically addresses the need for dual-row connectivity with standardized spacing.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series parts with matching pin counts and pitch. Cross-reference dimensions carefully to ensure compatibility with existing panel cutouts and board layouts.
